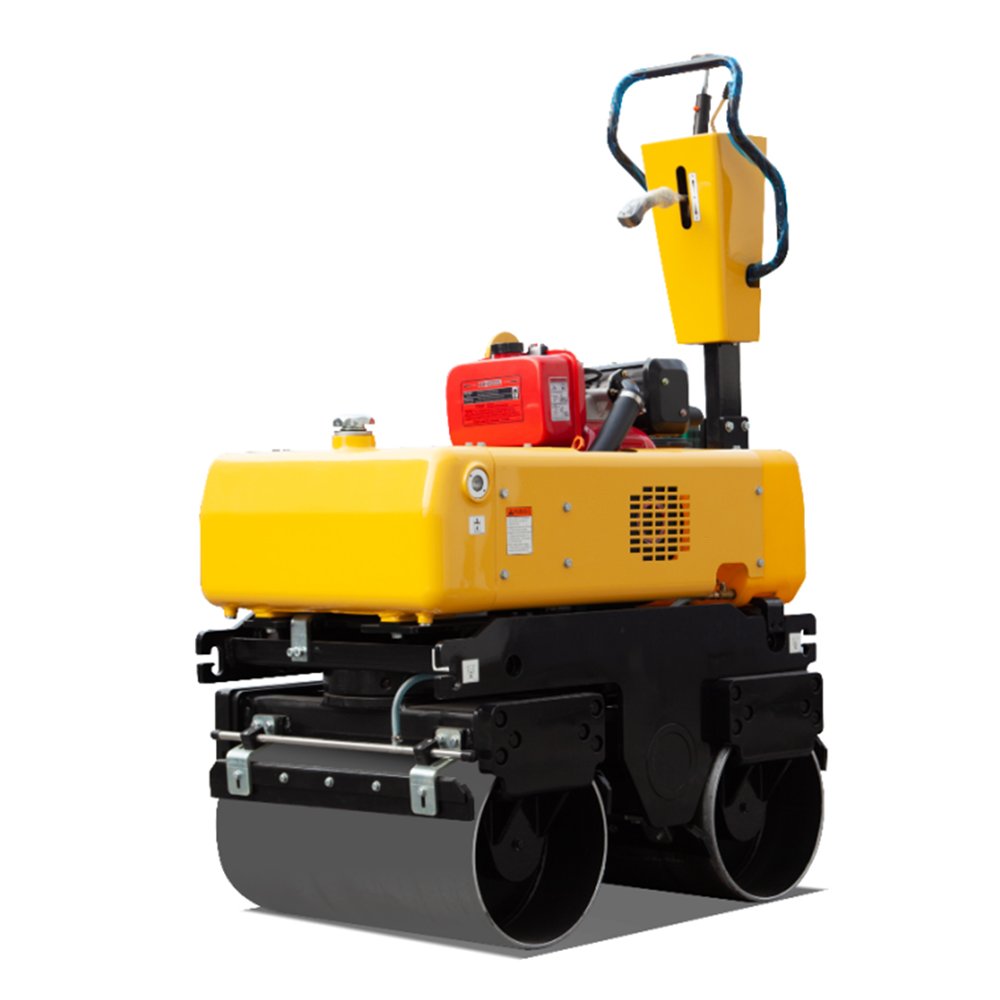

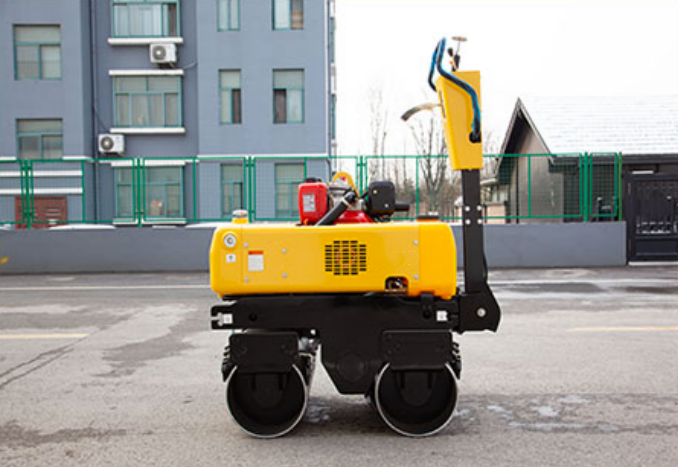

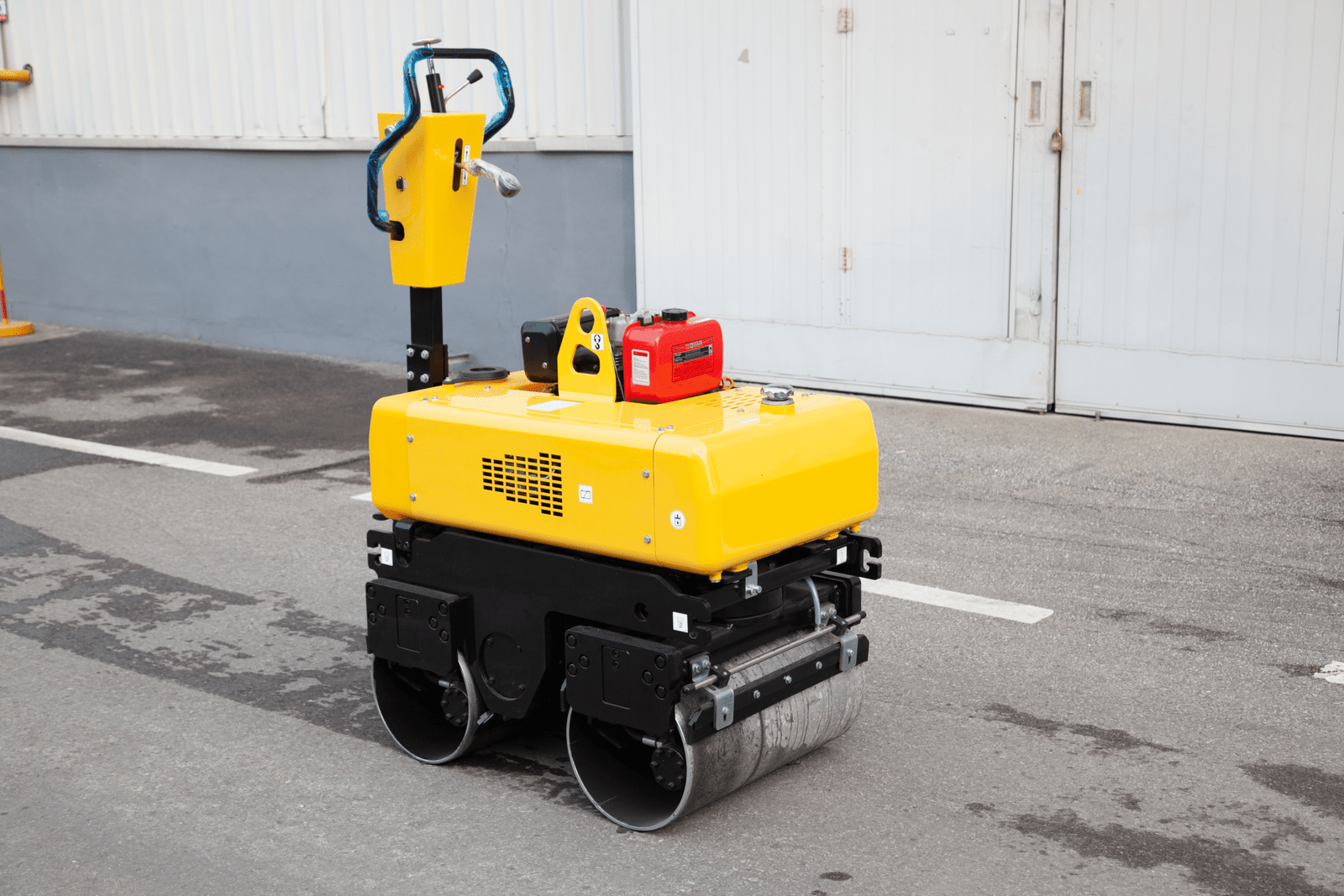

0.8 Ton Walk Behind Vibratory roller WD008 Mini Tandem Roller
The Qhmach walk behind vibratory roller WD008 tandem roller features hydraulic steering and dual-drive technology, making it easy to maneuver around corners.
It’s primarily used for compacting and maintaining narrow roads, including construction, pipeline backfilling, and stadium flooring for pipe passages and drainage ditches. Its plastic-sprayed surface resists rust and corrosion.
Main Technical Performance Characteristics

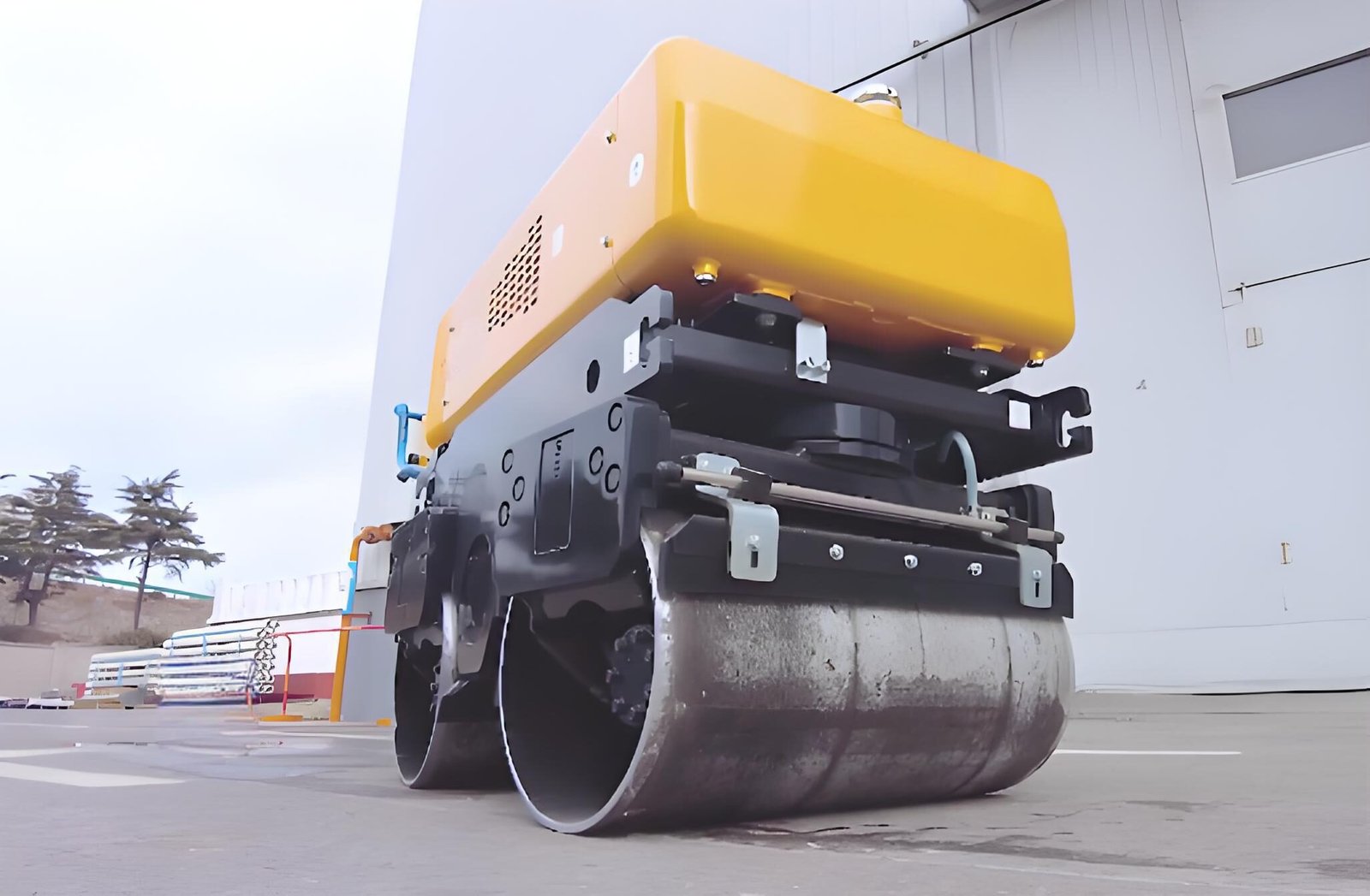

01. Hydraulic Steering System
The WD008 walk behind vibratory roller utilizes a hydraulic steering mechanism, significantly reducing operator fatigue and improving work efficiency. This feature allows for greater flexibility in tight spaces and around corners, making it suitable for a variety of construction applications.
02. Large Capacity Water Tank
The WD008 manual road roller is equipped with a streamlined, large-capacity water tank made of high-quality plastic, which is both rust-resistant and aesthetically pleasing. This design ensures easy maintenance.
03. Excellent Drive Performance
The WD008 hand road roller machine is equipped with a high-performance, imported heavy-duty variable-speed piston pump that enables smooth travel speed adjustment. This heavy-duty pump is particularly suitable for use in harsh working conditions, ensuring the machine's reliability and durability. Equipped with a powerful American cycloidal hydraulic motor, the dual-drive travel system provides excellent traction and stability.

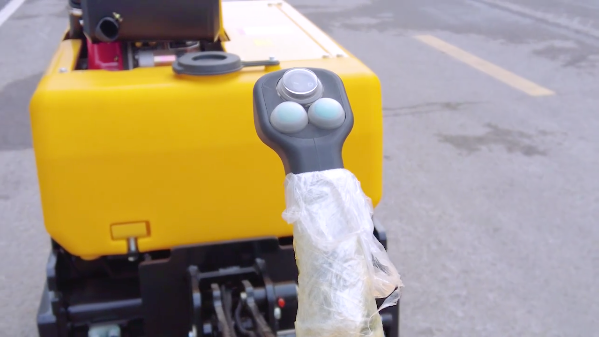

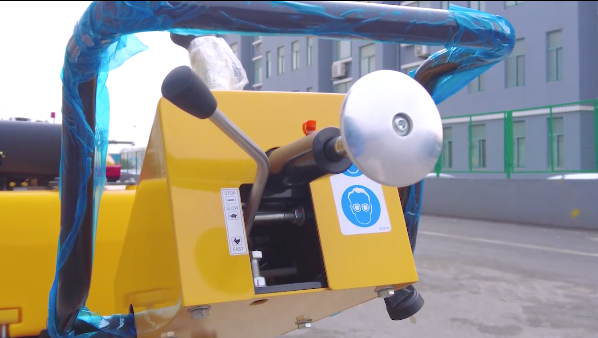

Easy Operation
Forward, reverse, left and right steering, and vibratory compaction operations are all centrally located on the handle for easy operation. This design maximizes user convenience, allowing the operator to focus on the construction task.
Optimized Maintenance Design
The WD008 walk behind roller compactor features a plastic-sprayed finish, which is not only aesthetically pleasing but also rust-resistant and corrosion-resistant, making it suitable for various construction environments.
Qhmach - More Road Roller
Our mini road roller offer powerful power and excellent fuel economy, ensuring efficient operation. Their excellent drive performance and flexible speed change adapt to various working conditions, while the rotatable seat in the cab enhances operator comfort.
WD008 0.8Ton Walk Behind Vibratory Roller Technical Parameter
| Item | Unit | WD008 |
|---|---|---|
| Operating Mass | kg | 860 |
| Static Linear Load | N/cm | 60.7/65.7 |
| Amplitude | mm | 0.5 |
| Vibrating Frequency | Hz | 65 |
| Centrifugal Force | kN | 17 |

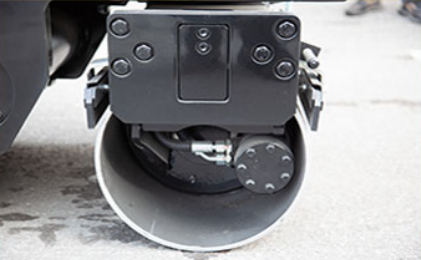

| Width of Vibration Drum | mm | 680 |
| Track Width | mm | 650 |
| Diameter of Vibration Drum | mm | Ф355 |
| Speed Range | km/h | 0-3.5 |
| Grade Ability | % | 30 |
| Drive Mode | - | Hydraulic motor drive |
| Vibration Mode | - | Mechanical transmission, electromagnetic clutch |
| Steering Mode | - | Hydraulic steering |
| Swing Angle | ° | ±15 |

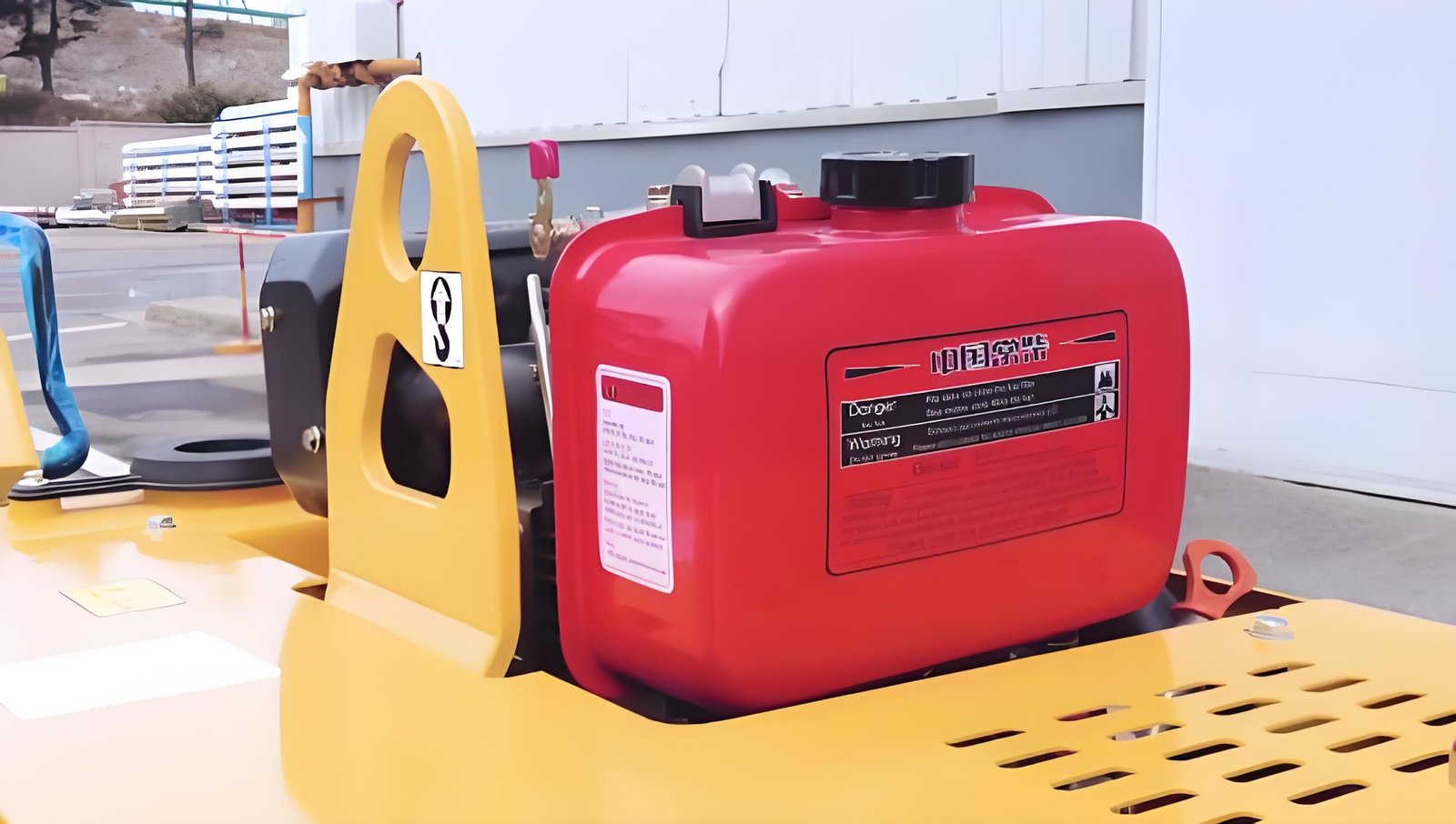

| Engine Brand | - | CF186F / Air-cooled 4-stroke single-cylinder diesel engine |
| Engine Power | kW | 8.0 hp / 3600 rpm |
| Fuel Consumption | g/kWh | 280 |
| Water Tank Capacity | L | 38 |
| Fuel Tank | L | 5.5 |
| Hydraulic Oil Tank | L | 1.65 |
| Dimensions | mm | 2460*732*1800 |
| Packaging Method | mm | 1450×850×1910 |
Qhamch Road Roller Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
