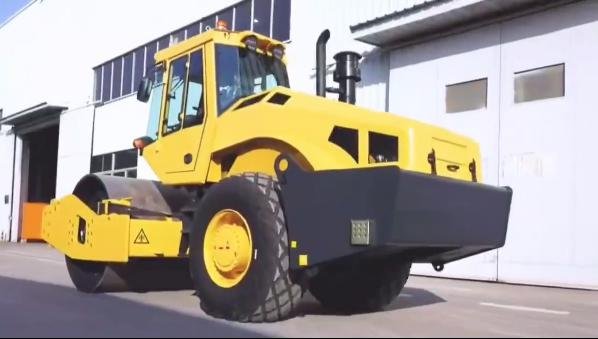

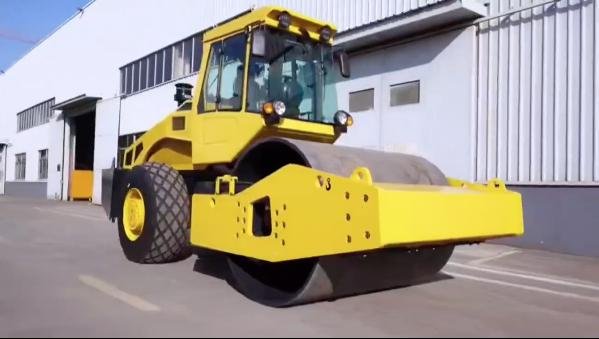

16Ton Single Drum Vibration Road Roller Machine WS160D EU Stage V Emission
The Qhmach WS160D fully hydraulic vibration road roller machine is equipped with a 111kW water-cooled Weichai WP4.6NG1 engine, meeting Euro V emission standards. This engine boasts ample power reserves, low fuel consumption, low noise, and rapid start-up. Furthermore, it can be equipped with padfoot wheel, allowing for the use of a fully hydraulic single drum padfoot roller to meet diverse construction needs.
It is suitable for all construction sites, compacting loose surface materials such as sand and gravel, as well as surface compaction of crushed stone and ballast bases. The WS160D hydraulic fully road roller compaction roller excels at construction sites such as highways, airports, dams, and industrial areas.
| Operation Weight(kg) | |
|---|---|
| Engine Brand | |
| Emission Standard | |
| Centrifugal Force (KN) | |
| Vibration Frequency (Hz) | |
| Dimensions (mm) | 6400*2300*3150 |
| OEM/ODM | Support |
Main Technical Performance Characteristics
01. Efficient Power
The WS160D single drum vibration road roller machine is equipped with a Weichai engine with a power of 111kW, offering quick starting, durability, and fuel economy.
02. Intelligent Vibration Control
WS160D fully hydraulic single drum roller adopts an internationally renowned brand closed hydraulic vibration system, which consists of an electro-hydraulic controlled two-point variable pump and a fixed displacement motor to achieve dual-frequency and dual-amplitude vibration.The vibrating wheel adopts a reinforced inner partition structure with high support rigidity.
03. Advanced Drive System
Road Roller adopts the hydraulic drive system of internationally renowned brands and combines it with domestically renowned engineering drive axles to form an ideal drive transmission system. It is equipped with wet brakes and high-torque axle motors to adapt to the speed and traction requirements of various working conditions.
01. Easy Operation

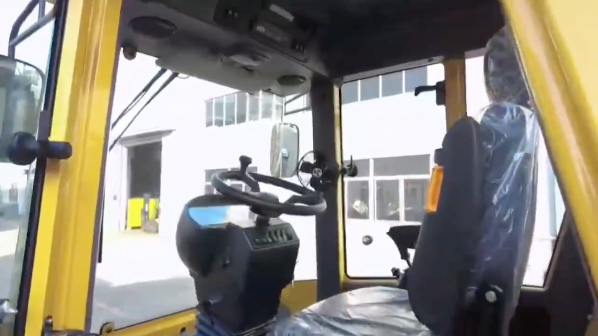

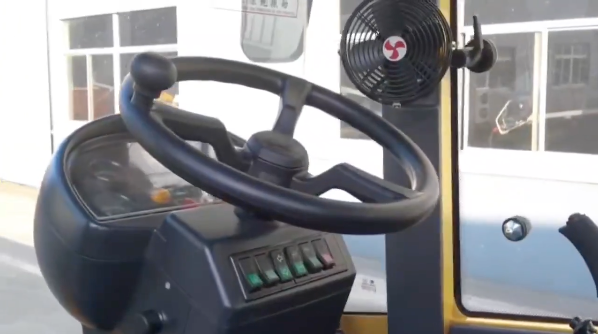

Single-lever operation enhances safety and reduces labor intensity.
02. Durable Design
The WS160D single drum road roller compactor vibratory wheel features a reinforced internal baffle structure for enhanced support rigidity. The impact-resistant, reinforced vibration bearing features four-point support, improving bearing load conditions. The carefully designed bearing seat with lubrication channels provides excellent lubrication and heat dissipation, ensuring superior performance and long-term reliability of the vibration bearing, even under severe alternating loads.
03. 25°(45%) Climbing Capability
The WS160D single drum roller compactor, with its powerful engine and well-designed center of gravity, can effectively handle steep slopes and complex terrain, ensuring operational continuity and efficiency. At a 25° incline, the roller demonstrates excellent traction and stability, minimizing slippage and ensuring consistent compaction results.
04. Safe Brake System
Linked control of the non-powered brake ensures safety and reliability.
Convenient Maintenance
The engine cover at a wide angle for easy maintenance and servicing. This design allows operators to quickly access the engine components, streamlining routine checks and repairs. As a result, maintenance tasks can be completed efficiently, minimizing downtime and ensuring the roller remains in optimal working condition.
Qhmach - More Road Roller

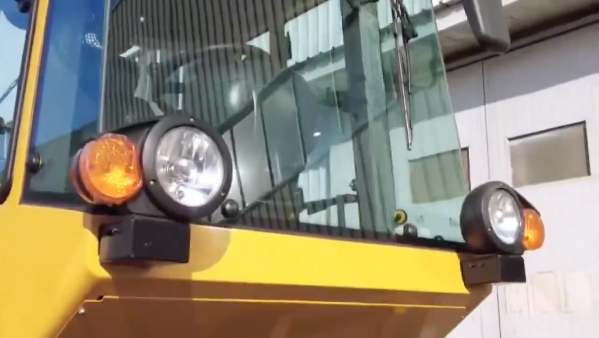

This single drum roller compactor is equipped with a cabin featuring heating and cooling air conditioning, ensuring high comfort for the operator. This system allows for efficient work in various weather conditions, reducing fatigue during long hours of operation.
Sheep Foot Roller
Choose This
Road Roller Fuel Hearer
Choose This
Road Roller Density Tester
Choose This
WS160D Vibration Road Roller Machine Technical Parameter
| Single drum vibration roller | Unit | WS160D |
|---|---|---|
| Operating weight | kg | 16400 |
| Static linear load | N/cm | 464 |
| Amplitude | mm | 1.9/0.9 |
| Vibration frequency | Hz | 28/33 |
| Centrifugal force | kN | 330/225 |
| Drum width | mm | 2110 |
| Drum diameter | mm | 1540 |
| Speed range | km/h | 0-9 |
| Climbing capability | % | 45 |
| Turning radius | mm | 6500 |
| Engine brand | – | Weichai |
| Emission standard | – | EU Stage V |
| Engine power | kW | 111 |
| Dimensions (L×W×H) | mm | 6400*2300*3150 |
Qhamch Road Roller Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
