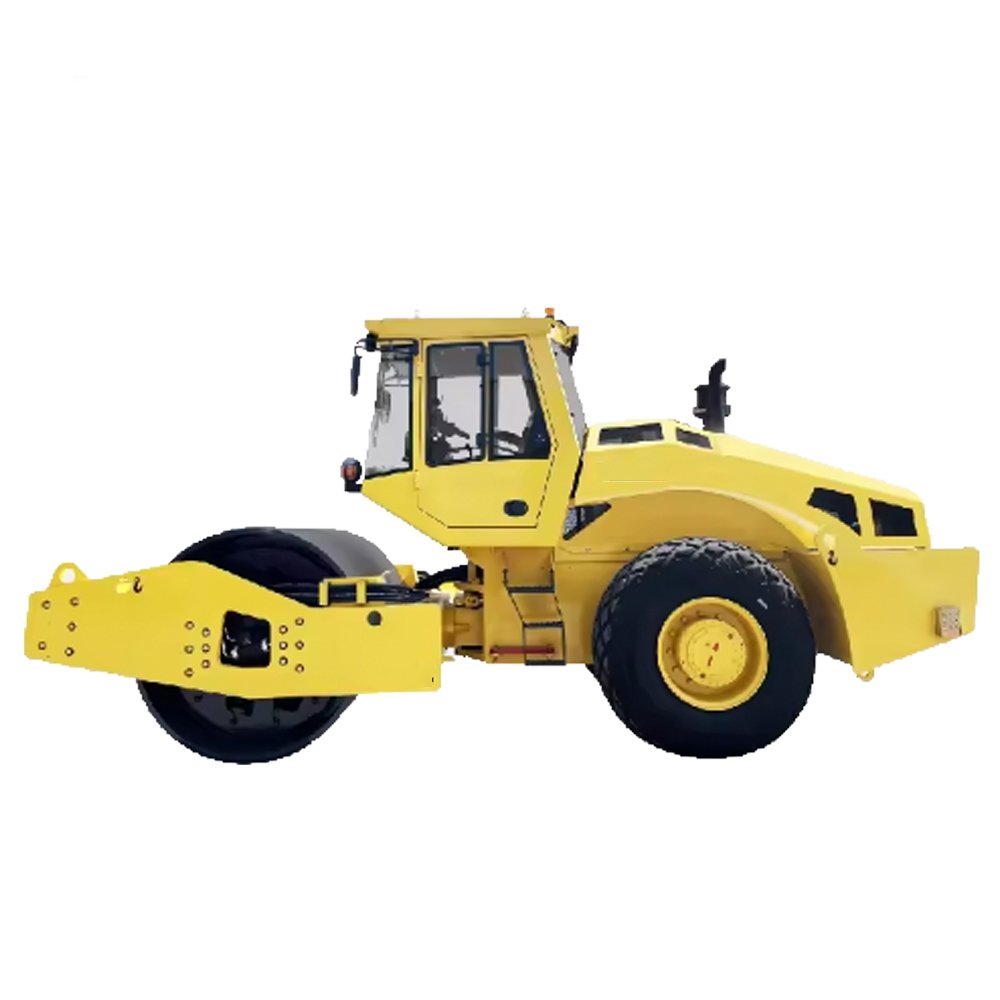

17 Ton Single Smooth Drum Vibratory Roller WS176D Asphalt Road Roller
The Qhmach WS176D smooth drum vibratory roller is equipped with a powerful Weichai turbocharged engine, boasting a power output of 129 kW, providing ample power reserves, and offering advantages such as low fuel consumption and low noise.
This model can also be equipped with a padfoot roller, suitable for various construction sites. It effectively compacts loose road materials such as crushed stone, as well as the surface layer of crushed stone and ballast subgrades. The 17-ton WS176D fully hydraulic single drum asphalt road roller performs particularly well on construction sites such as highways, airports, dams, and industrial areas.
Main Technical Performance Characteristics
01. Efficient Power
The WS176D single smooth drum vibratory roller is equipped with a Weichai engine with a power of 129kW, offering quick starting, durability, and fuel economy.
02. Intelligent Vibration Control
WS176D single drum vibrating roller adopts an internationally renowned brand closed hydraulic vibration system, which consists of an electro-hydraulic controlled two-point variable pump and a fixed displacement motor to achieve dual-frequency and dual-amplitude vibration.The vibrating wheel adopts a reinforced inner partition structure with high support rigidity.
03. Advanced Drive System
Road Roller adopts the hydraulic drive system of internationally renowned brands and combines it with domestically renowned engineering drive axles to form an ideal drive transmission system. It is equipped with wet brakes and high-torque axle motors to adapt to the speed and traction requirements of various working conditions.
01. Easy Operation
Single-lever operation enhances safety and reduces labor intensity.
02. Durable Design
The WS176D vibrating single drum roller vibratory wheel features a reinforced internal baffle structure for enhanced support rigidity. The impact-resistant, reinforced vibration bearing features four-point support, improving bearing load conditions. The carefully designed bearing seat with lubrication channels provides excellent lubrication and heat dissipation, ensuring superior performance and long-term reliability of the vibration bearing, even under severe alternating loads.
03. 25°(45%) Climbing Capability
The WS176D single drum road roller, with its powerful engine and carefully designed center of gravity, can effectively handle steep slopes and complex terrain, ensuring continuous and efficient operation. Even at steep inclines, the roller maintains excellent traction and stability, minimizing slippage and ensuring consistent compaction results.
04. Safe Brake System
Linked control of the non-powered brake ensures safety and reliability.
Convenient Maintenance
The engine cover at a wide angle for easy maintenance and servicing. This design allows operators to quickly access the engine components, streamlining routine checks and repairs. As a result, maintenance tasks can be completed efficiently, minimizing downtime and ensuring the roller remains in optimal working condition.
Qhmach - More Road Roller
This single drum roller compactor is equipped with a cabin featuring heating and cooling air conditioning, ensuring high comfort for the operator. This system allows for efficient work in various weather conditions, reducing fatigue during long hours of operation.
Sheep Foot Roller
Choose This
Road Roller Fuel Hearer
Choose This
Road Roller Density Tester
Choose This
Single Smooth Drum Vibratory Roller WS176D Technical Parameter
| Single drum vibration roller | Unit | WS176D |
|---|---|---|
| Operation weight | kg | 17600 |
| Static linearity | N/cm | 510 |
| Amplitude | mm | 1.9/0.9 |
| Vibration frequency | Hz | 28/33 |
| Centrifugal force | kN | 350/245 |
| Drum width | mm | 2110 |
| Drum diameter | mm | 1540 |
| Speed range | km/h | 0-9 |
| Climbing capability | % | 45 |
| Turning radius | mm | 6500 |
| Engine brand | – | Weichai |
| Emission standard | – | Tier2 |
| Engine power | kW | 129 |
| Dimensions | mm | 6400*2300*3200 |
Qhamch Road Roller Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
