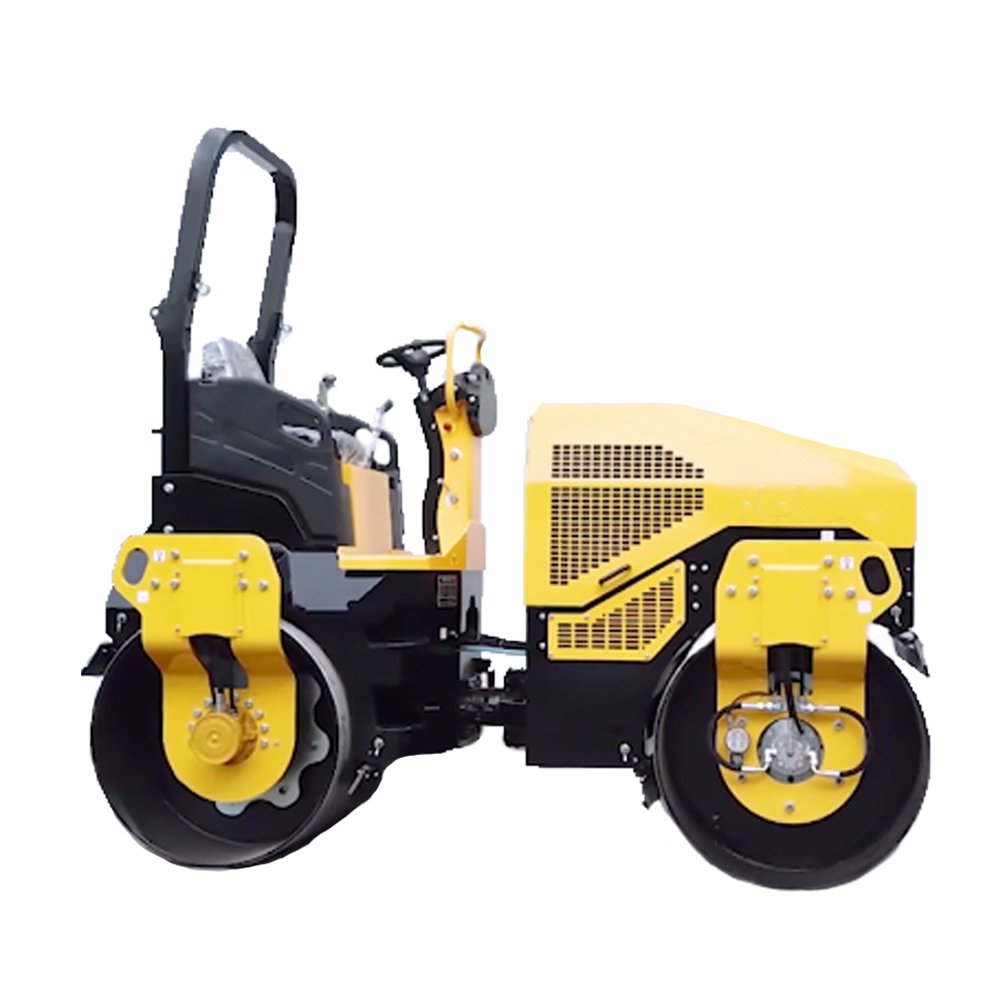

4 Ton Roller WD04 Small Tandem Roller with Euro V Emission
The Qhmach WD04 vibratory small tandem roller, equipped with a Japanese Yanmar engine that meets Euro V emission standards. The Danish Sauer gear motor drives the drum vibration, and single and double vibration modes can be freely switched to improve efficiency.
The 4 ton roller WD04 is primarily used for compacting and maintaining roads in narrow areas, building construction, backfilling pipelines, and installing pipes and drains in sports stadiums.
| Operation Weight(kg) | |
|---|---|
| Engine Brand | |
| Emission Standard | |
| Centrifugal Force (KN) | |
| Vibration Frequency (Hz) | |
| Dimensions (mm) | 2850*1520*2700 |
| OEM/ODM | Support |
Main Technical Performance Characteristics
01. Powerful Engine
This small tandem roller WD04 uses a Japanese YANMAR engine, which is economical and energy-saving, has ample power, and a low failure rate, ensuring efficient operation under various complex working conditions and meeting demanding construction requirements.
02. Excellent Drive and Shifting Performance
The WD04 small pavement roller is equipped with a Danfoss variable displacement piston pump, providing a smooth, continuously variable travel experience. It intelligently adjusts speed based on varying work requirements, enhancing operational flexibility and efficiency.
03. Efficient Vibration System

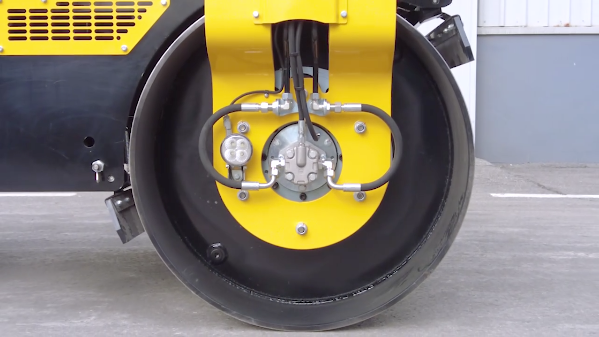

A Danish Sauer gear motor drives the drum vibration, enabling flexible switching between single and dual vibration modes. This allows the WD04 to tailor compaction to the specific material characteristics, ensuring optimal results.
04.Large-Capacity Water Tank
The WD04 utilizes a high-quality, rust-resistant, and corrosion-resistant plastic water tank with a large 200L capacity, reducing the need for frequent water additions and improving work efficiency and productivity. The WD04 is also equipped with an intelligently controlled intermittent fan-shaped water spraying system, ensuring uniform water application and optimizing compaction results while conserving water resources and reducing operating costs.
01. Easy Operation

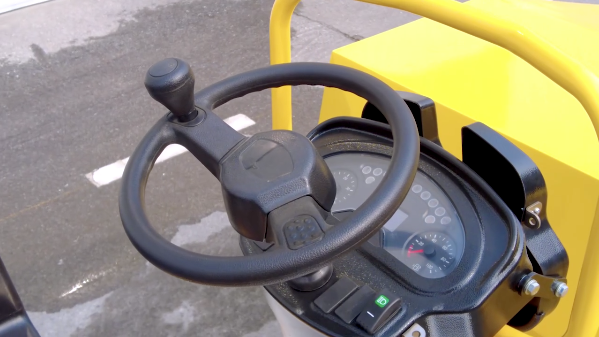

The WD04 4 ton roller features continuously variable forward and reverse speeds for easier operation. The vibration and water spray buttons are cleverly integrated into the control handle, enhancing operator comfort. A neutral position function ensures safety during operation.
02. Highly Wear-Resistant Scraper
The ultra-wear-resistant scraper design of the mini tandem roller allows for easy removal during site transfers, reducing soil adhesion, saving cleanup time, and improving work efficiency.
03. Intelligent Control Center
The WD04 small tandem roller microcomputer-based instrument console integrates operation, monitoring, and alarm functions, providing real-time monitoring of equipment status and prompt fault warnings, enhancing user convenience and safety.
04. Safe Brake System
Equipped with a French Poclain piston motor, it achieves dual-drive travel and features an automatic parking brake, ensuring the WD03 can park stably in any situation, enhancing operational safety.
Optimized Maintenance Design
The road roller design allows for easy access and maintenance of all key components, reducing maintenance time and ensuring the machine is always in optimal working condition.
Qhmach - More Road Roller
Our tandem vibrating rollers offer powerful power and excellent fuel economy, ensuring efficient operation. Their excellent drive performance and flexible speed change adapt to various working conditions, while the rotatable seat in the cab enhances operator comfort.
WD04 Small Tandem Roller Technical Parameter
| Model | Unit | WD04 |
|---|---|---|
| Operation weight | kg | 4200 |
| Static linearity(f/r) | N/cm | 150/135.5 |
| Vibration frequency | Hz | 60 |
| Amplitude | mm | 0.5 |
| Centrifugal force | kN | 2*40 |
| Vibration Wheel Width | mm | 1400 |
| Vibration Wheel Diameter | mm | 900 |
| Walking speed | km/h | 0-12 |
| Climbing capability | % | 40 |
| Turning Radius | mm | 2600 |
| Engine brand | – | YANMAR |
| Emission standard | – | Euro V |
| Engine power | kW | 35 |
| Dimensions | mm | 2850*1520*2700 |
Qhamch Road Roller Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
