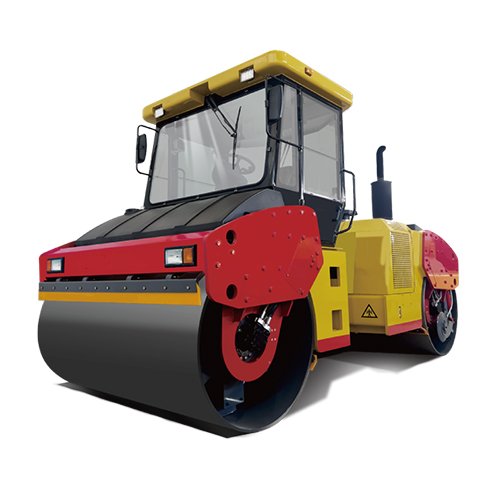

10 Ton Tandem Roller Compactor WD106HF Double Drum Asphalt Roller
The Qhmach KD106HF tandem roller compactor is a fully hydraulic 10 ton roller equipped with a Weichai engine for powerful performance. It also features a large-capacity water tank to ensure continuous operation.
The KD106HF tandem vibrating roller is primarily suitable for compacting asphalt concrete, cement concrete, and other surface layers in projects such as high-end highways, airports, and parking lots. It is also suitable for compacting roadbed and sub-base materials.
| Operation Weight(kg) | |
|---|---|
| Engine Brand | |
| Emission Standard | |
| Centrifugal Force (KN) | |
| Vibration Frequency (Hz) | |
| Dimensions (mm) | 4920*2250*3200 |
| OEM/ODM | Support |
Main Technical Performance Characteristics
01. Powerful Engine
The tandem roller compactor KD106HF is equipped with a Weichai Tier3 electronic fuel injection engine with a power output of 103kW. It offers powerful power, quick starting, durability, and fuel economy.
02. Excellent Drive and Shifting Performance
The 10 ton roller WD106H uses a closed hydraulic system consisting of a Danfoss high-pressure plunger pump and motor, ensuring excellent drive performance and outstanding gradeability. The hydraulic speed change function ensures that the roller can operate at the most appropriate speed under different working conditions.
03. Efficient Vibration System
WD106HF tandem vibrating roller is equipped with Danfoss vibration pump and vibration motor to form a closed vibration system, dual-frequency and dual-amplitude, scientific and reasonable static linear load and exciting force configuration, so as to effectively compact different types of materials and different thicknesses of plies.
04.Large-Capacity Water Tank
The WD106HF double drum roller is equipped with a large-capacity water tank and three-stage filtration. Electronically controlled pressure spraying supports continuous and intermittent watering, ensuring long-term operation.
01. Easy Operation
Single-lever operation enhances safety and reduces labor intensity.
02. Durable Design
The WD106HF double drum asphalt roller vibrating wheel adopts a four-point supported inner-cylinder vibration chamber structure with high strength and good rigidity. It is equipped with imported impact-resistant reinforced vibration bearings to ensure bearing performance. The bearing seat with lubrication oil channels has good lubrication and heat dissipation properties. Under strong alternating loads, it can still ensure the excellent performance and durability of the vibration bearing, thereby ensuring high construction efficiency.
03. 30% Climbing Capability
The WD106HF 10 ton double drum roller features an advanced hydraulic system. This closed-loop hydraulic system, consisting of an imported variable displacement pump and variable displacement motor, ensures excellent driving performance and high gradeability. A two-speed continuously variable transmission ensures optimal speed operation under varying operating conditions.
04. Safe Brake System
The braking system consists of multiple wet brakes on the vibrating wheel reducer and static hydraulic brakes on the closed hydraulic system. It has three functions: driving, parking, and emergency, ensuring safe and reliable driving.
05. Comfortable Operating Environment
The cab of this road roller compactor road heavy equipment features a well-sealed cabin, air conditioning, a swivel seat, and a spacious interior with extensive glass for an excellent field of vision, providing a safe and comfortable operating environment for the operator.
Maintenance Reminder
The road roller dashboard features an audible and visual alarm system that provides maintenance information, and an extra-large color LCD screen for enhanced operator comfort.
Qhmach - More Road Roller
Our tandem vibrating rollers offer powerful power and excellent fuel economy, ensuring efficient operation. Their excellent drive performance and flexible speed change adapt to various working conditions, while the rotatable seat in the cab enhances operator comfort.
Road Roller Edge Cutter
Choose This
Air Conditioning Warm Air
Choose This
Road Roller Density Tester
Choose This
WD106HF Tandem Roller Compactor Technical Parameter
| Item | Unit | KD106HF |
|---|---|---|
| Operating mass | kg | 10600 |
| Front wheel distribution mass | kg | 5300 |
| Rear wheel distribution mass | kg | 5300 |
| Static linear load (Front) | N/cm | 249 |
| Static linear load (Rear) | N/cm | 249 |
| Vibrating frequency | Hz | 42/50 |
| Amplitude | mm | 0.8/0.4 |
| Centrifugal force | kN | 120x2/80x2 |
| Width of vibration drum | mm | 2080 |
| Max. walking speed | km/h | 0-11 |
| Grade ability | % | 30 |
| Min. ground clearance | mm | 440 |
| Turning angle | ° | ±40 |
| Swing angle | ° | ±12 |
| Turning radius | mm | 6000 |
| Crab-walking distance | mm | ±150 |
| Engine brand | - | Weichai |
| Emission standard | - | Tier III |
| Engine power | kW | 103 |
| Fuel tank | L | 200 |
| External dimension | L | 4920x2250x3200 |
Qhamch Road Roller Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
