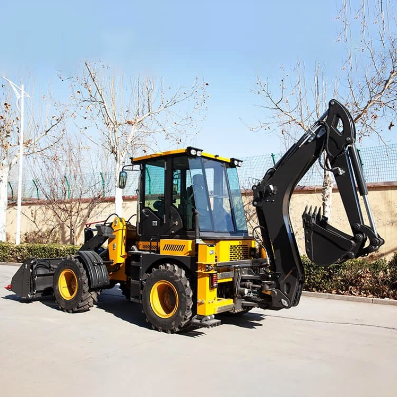

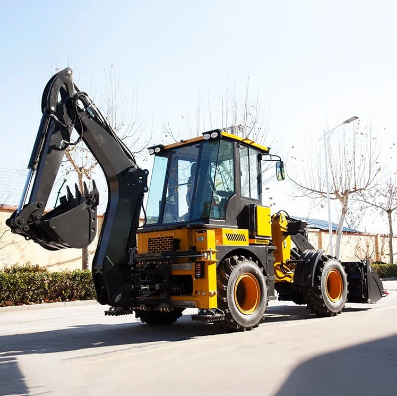

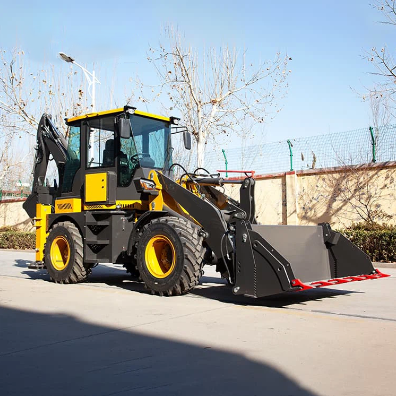

7 Ton Wheel Backhoe Loader WDE70 with Five Axis Linkage Design
The Qhmach WDE07 wheel backhoe loader is a powerful and eco-friendly 7 ton backhoe loader featuring low noise and emissions. With a five-axis linkage design and a rear-tilted front frame, it offers smooth travel over obstacles and ample space for a telescopic arm. The backhoe machine spacious cabin includes safety glass and amenities like a fan, radio, and air conditioning for comfort. It also supports various attachments, including snow plows, floor sweepers, crushers, clamps, and forks, making it ideal for construction, mining, agriculture, and landscaping.
Main Technical Performance Characteristics
01. High-Quality Hydraulic System:
WDE70 wheel backhoe loader equipped with branded hydraulic components for stable performance and long service life, along with a larger water tank to withstand high temperatures. The hydraulic steering and walking systems are user-friendly, featuring an advanced hydraulic torque converter and stepless transmission, with a four-wheel brake system that includes a built-in air pump.
02. Convenient Refueling
Features a streamlined, large-capacity fuel tank with a sloped fuel inlet for easy refueling.
03. Standardized Excavation
The WDE70 excavating end conforms to the same standards as the Doosan 70, offering strong excavation strength, depth, bucket capacity, and universal attachments, utilizing a five-axis linkage design (most excavator loaders use a four-and-a-half axis design).

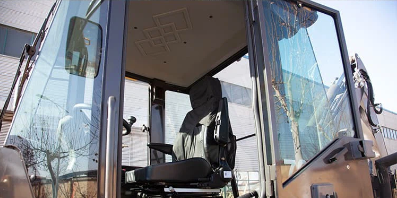

01. Spacious Cabin
The deluxe cabin uses safety glass, offering a bright and spacious interior. The seat can rotate and fold, and it includes a hydraulic tilting function for easy maintenance. The detachable cabin roof simplifies container transport.
02. Fault Diagnosis
Capable of performing all functions of both a wheeled 180° excavator and an equivalent loader, with front-mounted mechanical and rear excavating pilot operation systems for easy fault diagnosis and troubleshooting.
03. Smooth Movement
Wall-mounted lateral movement with minimal gaps ensures smooth operation without jamming. The rear-tilted front frame allows for smoother traversal over obstacles and provides ample space for installing a telescopic arm.
04. Safety Design
The rear excavating arm is equipped with a safety lock to ensure safe operation. The rear excavating pilot oil will be turned off when the front loader is in operation.
Qhmach - More Backhoe Loader
As a backhoe loader supplier, we offer tailored OEM/ODM services to meet your needs, including customization of engines, specific colors, and personalized logos. Our team is dedicated to ensuring that every aspect aligns with your brand identity and operational requirements. Let us help you create a distinctive solution.
WDE70 Wheel Backhoe Loader Technical Parameter
| Model | WDE70 |
|---|---|
| Rated load | 2500kg |
| Bucket capacity | 1.3m³ |
| Overall Weight | 6300kg |
| Max. Dumping height | 3000mm |
| Dumping distance | 840mm |
| Gearbox model | 265Y |
| Transmission mode | Hydraulic torque converter |
| Low gear | 5km/h |
| High gear | 30km/h |
| Max. steering angle | ±30° |
| LengthWidthHeight | 5890*2300*2910mm |
| Bucket width | 2100mm |
| Wheel base | 2455mm |
| Wheel thread | 2000mm |
| Min. ground clearance | 238mm |
| Engine model | 4102 |
| Engine brand | YUNNEI |
| Rated power | 55kW |
| Rated speed | 2300pm |
| Alve model | Big hub reduction axle |
| Tyre | 1670-20 |
| Service brake | Air push all |
| Parking break | Mechanical |
| Turning radius(outside of bucket) | 5000mm |
| Backhoe bucket capacity | 0.3m³ |
| Max. digging depth | 3830mm |
| Max. digging radius | 5160mm |
| Max. dumping height | 4700mm |
| Max. digging height | 4700mm |
| Max.digging radius lifting capacity | 750kg |
Qhamch Backhoe Loader Supplier Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
