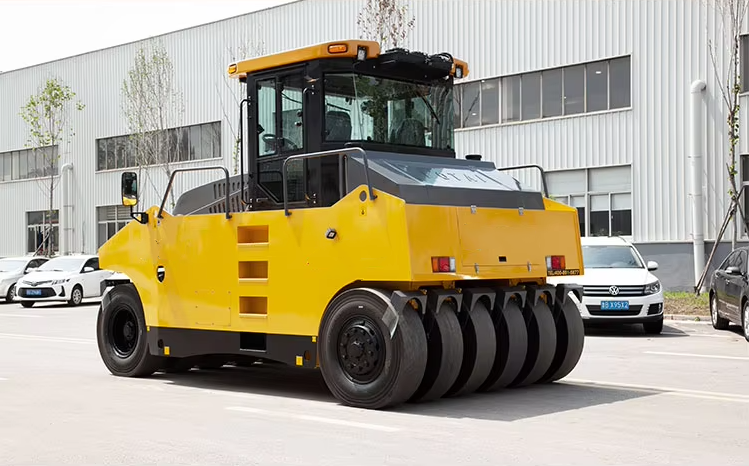

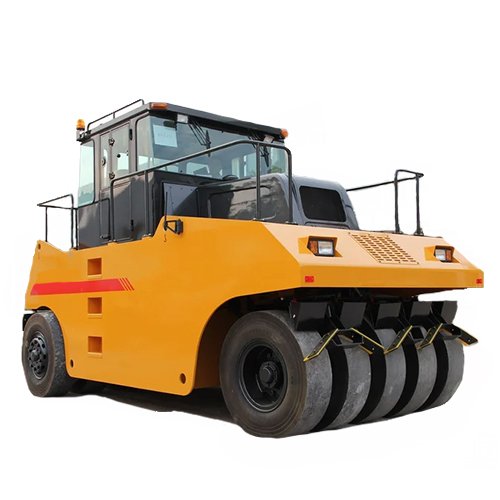

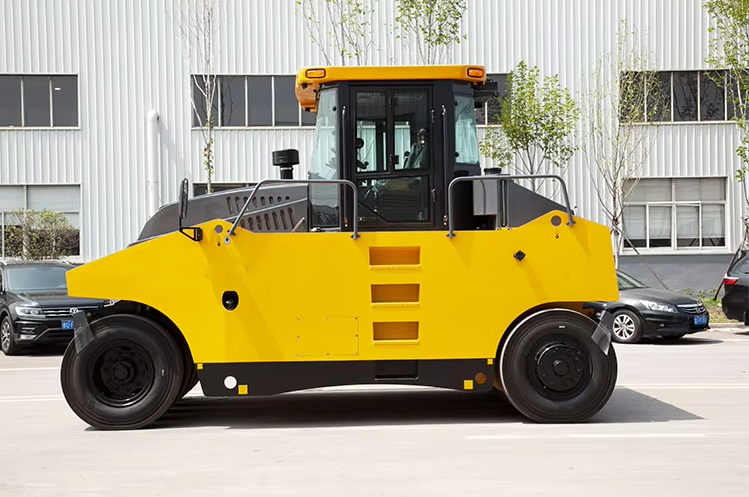

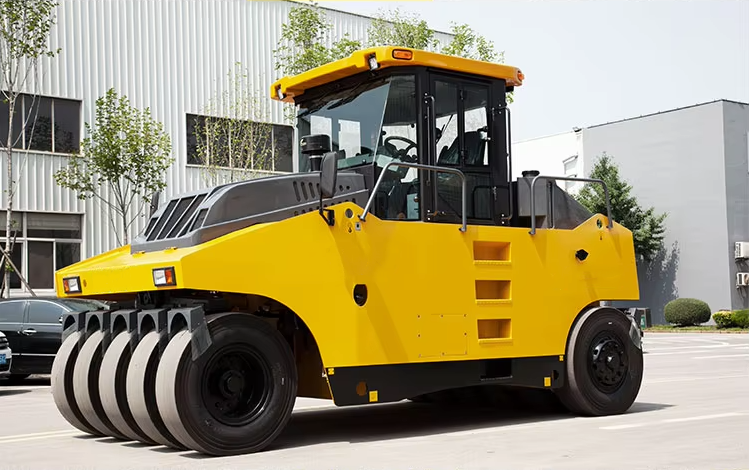

26 Ton Pneumatic Wheel Roller WP266H-2 with Weichai Engine
The Qhmach WP266H-2 pneumatic wheel roller is equipped with a Weichai engine, providing strong power with 140KW.The front tires are fully floating, effectively compensating for compaction and improving road surface smoothness. This pneumatic roller compactor fully hydraulic pneumatic asphalt roller is suitable for compacting base courses, sub-base courses, and asphalt pavements, making it an ideal piece of equipment for high-grade highways, ports, airports, and industrial construction sites.
Main Technical Performance Characteristics
01. Efficient Power

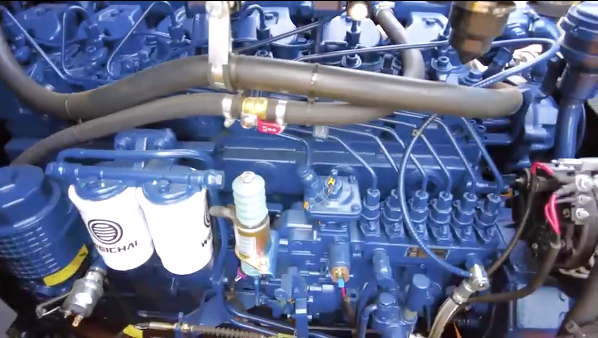

The pneumatic wheel roller WP266H-2 equipped with a Weichai 140KW engine, providing strong and sustained power, and ensuring durability and reliability.
02. Advanced Hydraulic Drive
This WP266H-2 pneumatic rubber tire roller fully hydraulic drive ensures smooth, shock-free starting and stopping, effectively preventing wrinkling and shoving on the working surface and ensuring extremely high compaction flatness.
03. Intelligent Compensation Compaction Technology

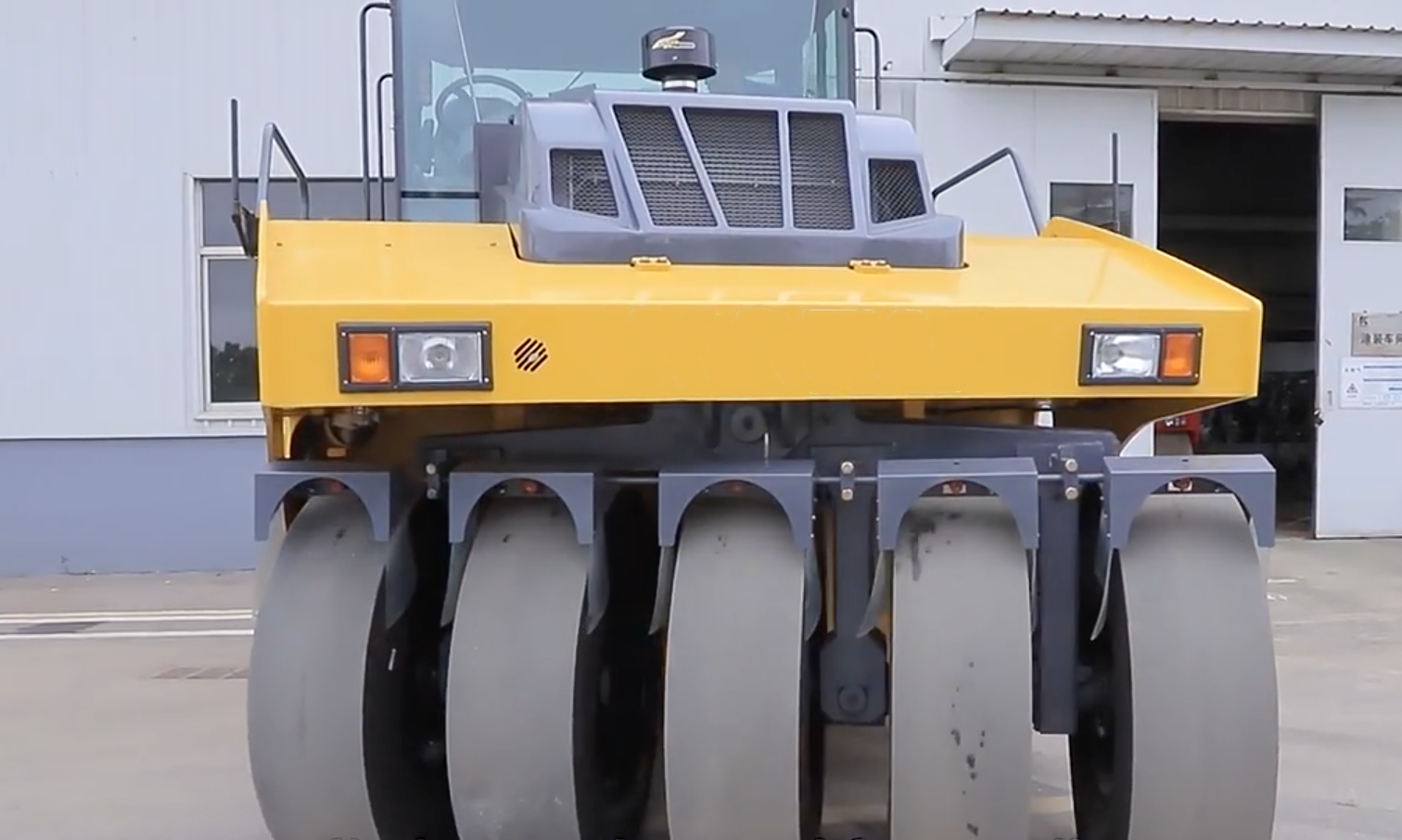

The WP266H-2 has 5 wheels in the front and 6 wheels in the rear. The fully floating front wheels can effectively compensate for soil compaction.
04. Fuel Injection Device
Prevent tire adhesion to asphalt.
01. Easy Operation

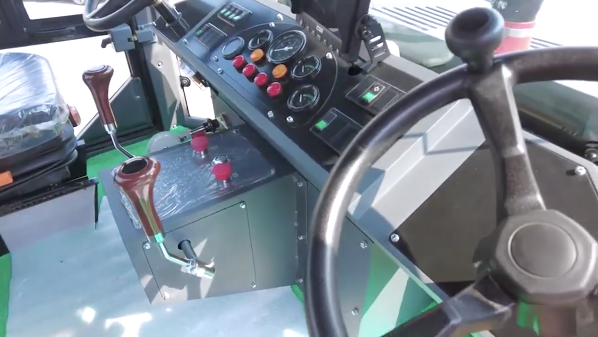

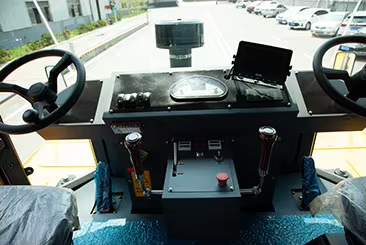

The WP266H-2 pneumatic asphalt roller cab can be operated from both sides, facilitating observation during construction. Single-lever operation and fully hydraulic stepless speed regulation make operation simple and safe, significantly reducing labor intensity.
02. Safe Brake System
Three-stage braking system (axle, hydrostatic, and pneumatic-hydraulic) suitable for various operating conditions, ensuring enhanced safety and reliability.
03. Comfortable Driving Environment

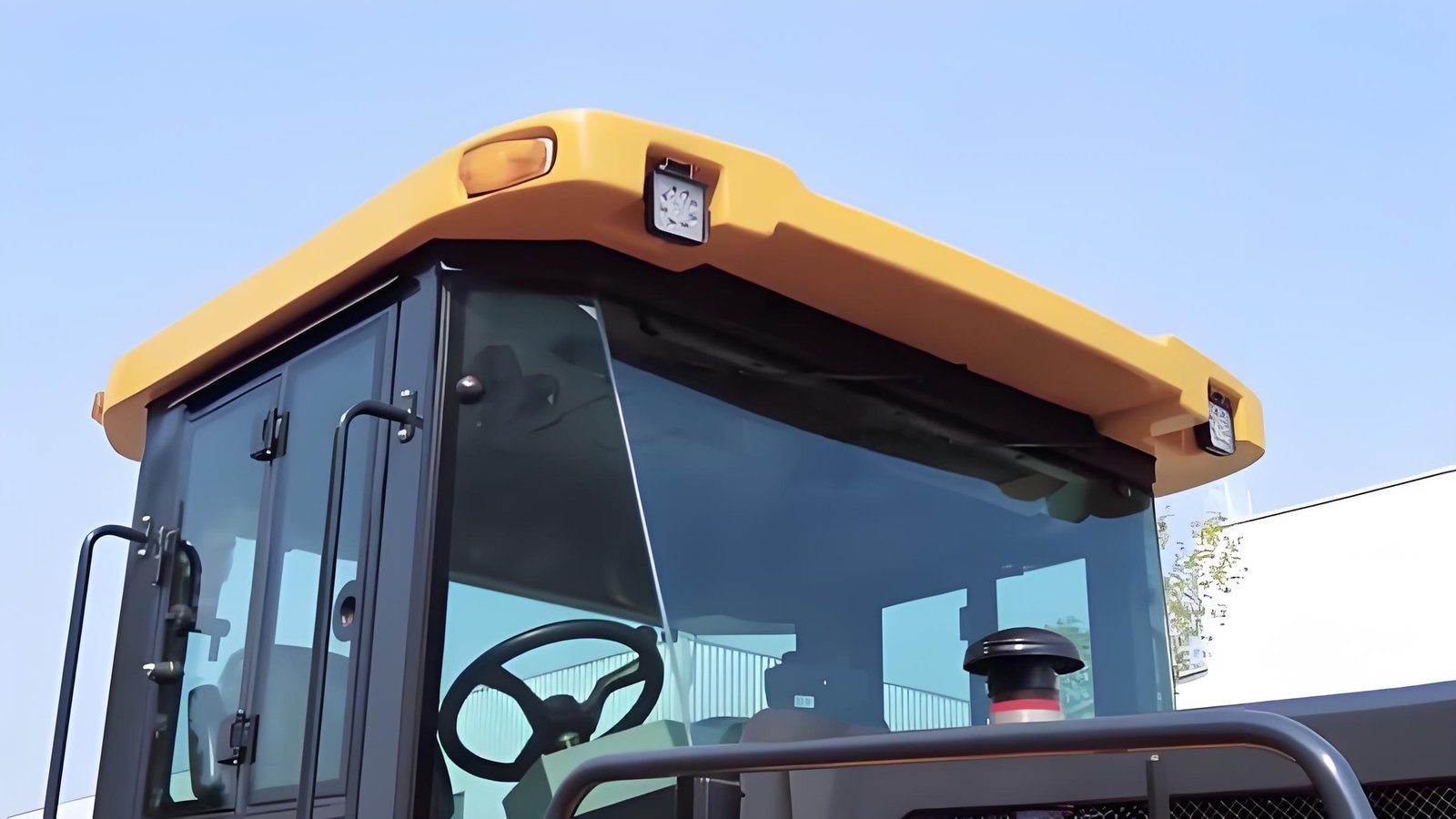

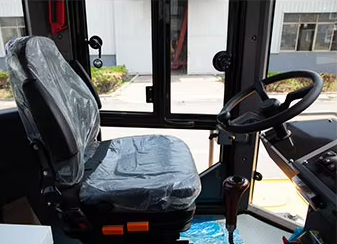

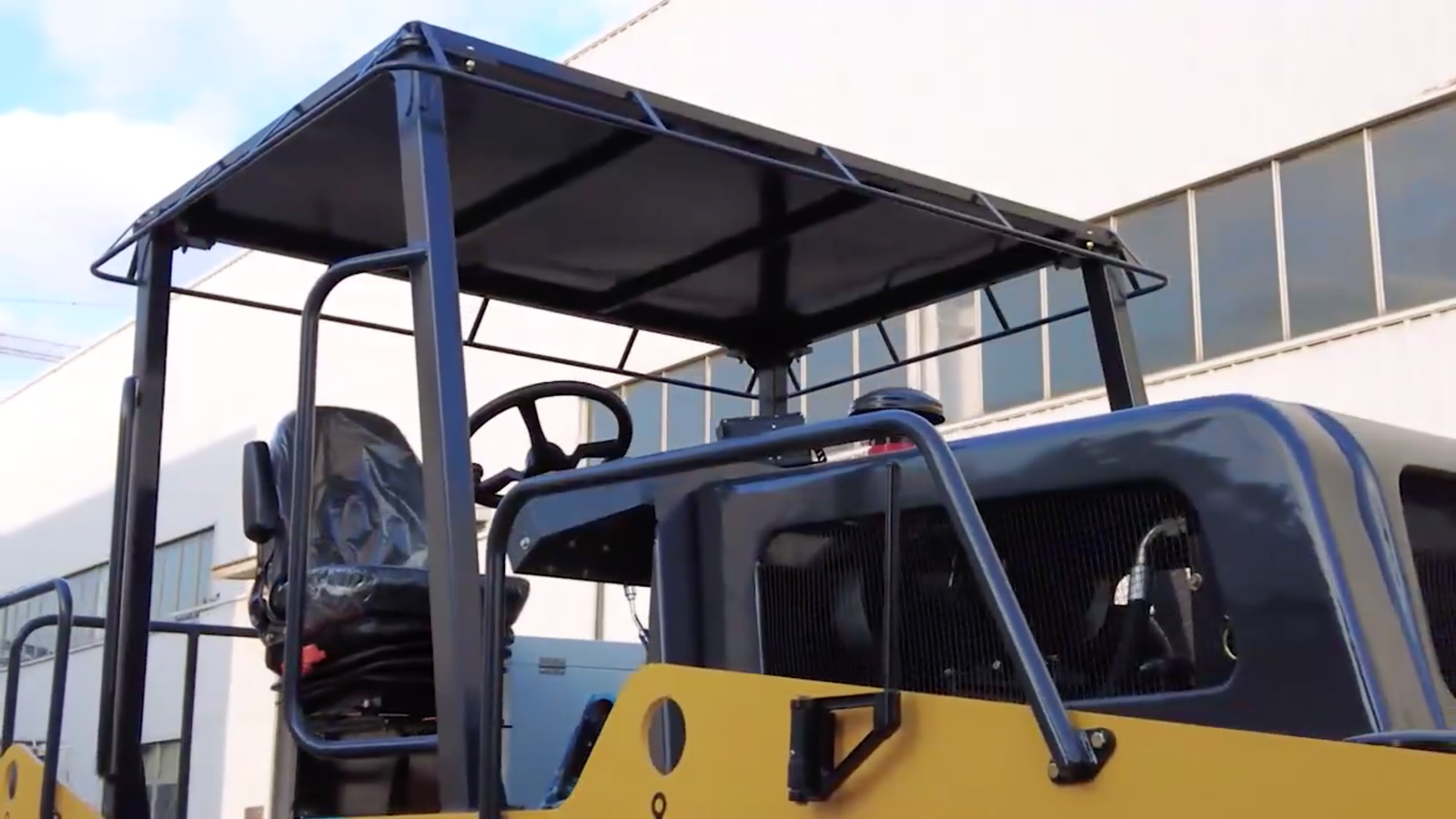

The pneumatic roller compactor cab offers excellent visibility and an attractive design. It features air conditioning for added comfort, and an optional awning.

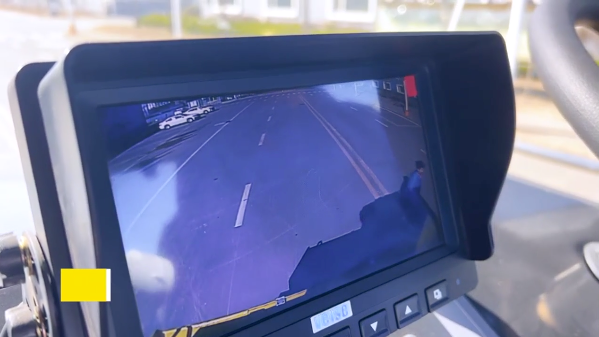

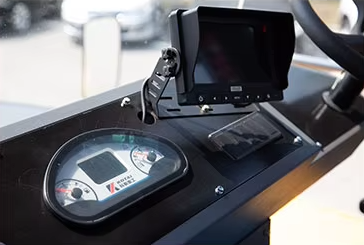

04. Rearview Camera
Standard high-definition rearview camera function for easy observation of road conditions behind.

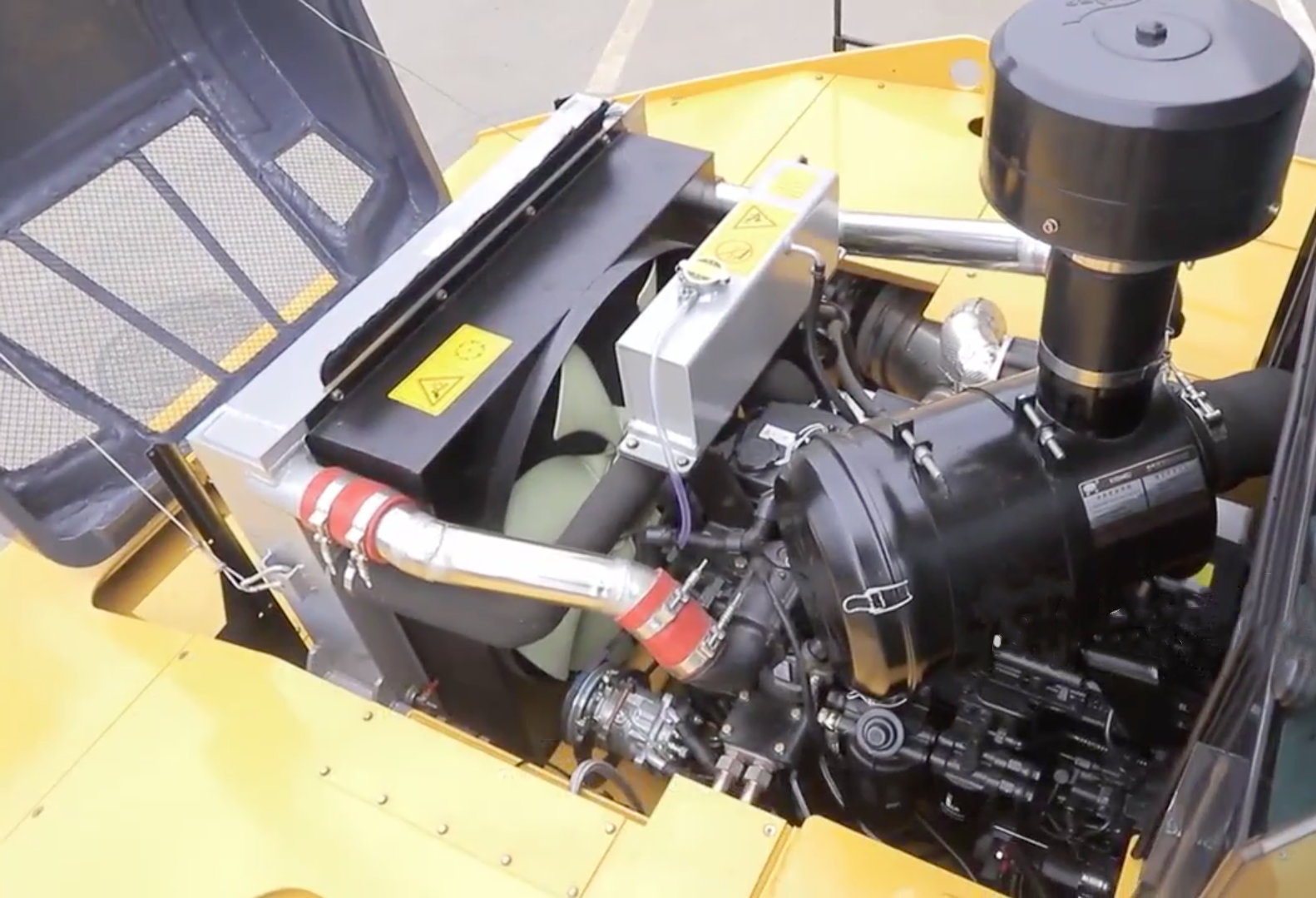

Convenient Maintenance
The engine cover for easy maintenance and servicing. This design allows operators to quickly access the engine components, streamlining routine checks and repairs. As a result, maintenance tasks can be completed efficiently, minimizing downtime and ensuring the roller remains in optimal working condition.
Qhmach - More Road Roller
Our pneumatic tyre rollers are all container compatible, designed to save customers on machine transportation costs.
26 Ton Pneumatic Wheel Roller WP266H-2 Technical Parameter
| Fully hydraulic pneumatic tyred rollers | Unit | WP266H-2 |
|---|---|---|
| Maximum operation weight | kg | 26000 |
| Ground pressure | kPa | 250-420 |
| Compaction width | mm | 2750 |
| Climbing capability | % | 20 |
| I speed | km/h | 0-7 |
| II speed | km/h | 0-14 |
| Turning radius | mm | 9000 |
| Type specification(matte) | – | 11.00-20 |
| Type qty(f/r) | – | 5/6 |
| Engine brand | – | Weichai |
| Emission standard | – | Tier3 |
| Engine power | kW | 140 |
| Dimensions | mm | 5200×2870×3380 |
Qhamch Road Roller Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
