30 Ton Excavator WW330 Crawler Hydraulic Excavator EU Stage V Emission

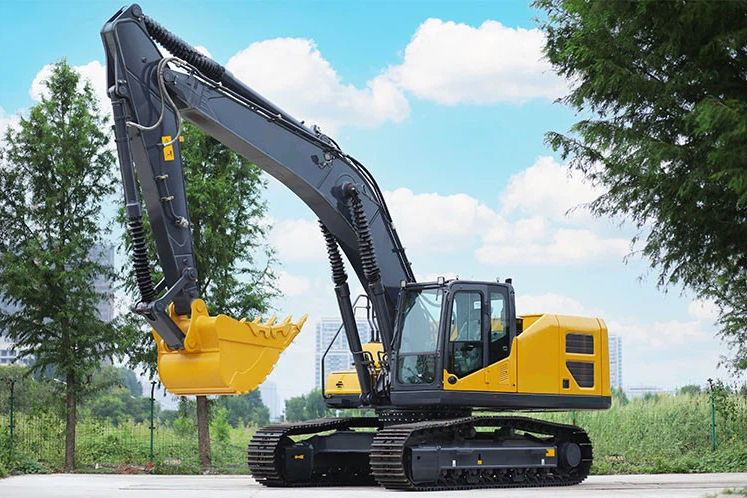

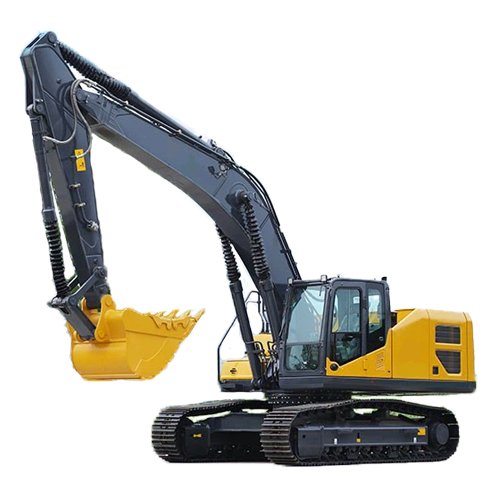

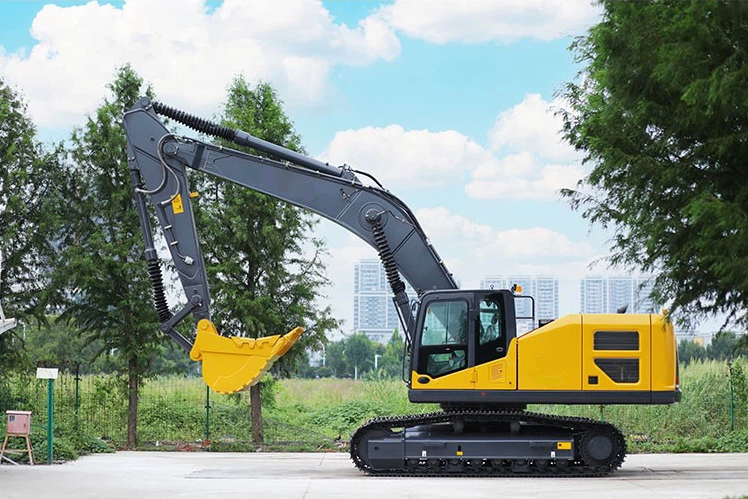

The Qhmach 30 ton excavator WW330 boasts a powerful 209 kW engine and a 1.6 m³ bucket capacity, ideal for various construction tasks. Its advanced hydraulic system offers four work modes and multiple attachments for versatility. With a ROPS safety cabin for operator protection, this durable machine excels in demanding environments, perfect for heavy-duty engineering, landscaping, and construction projects.
Main Technical Performance Characteristics
01. Powerful Cummins Engine
The WW330 30 ton excavator equipped with a 209kW reliable Cummins engine, ensuring stable performance and compliance with industry standards.
02. Efficient Hydraulic System

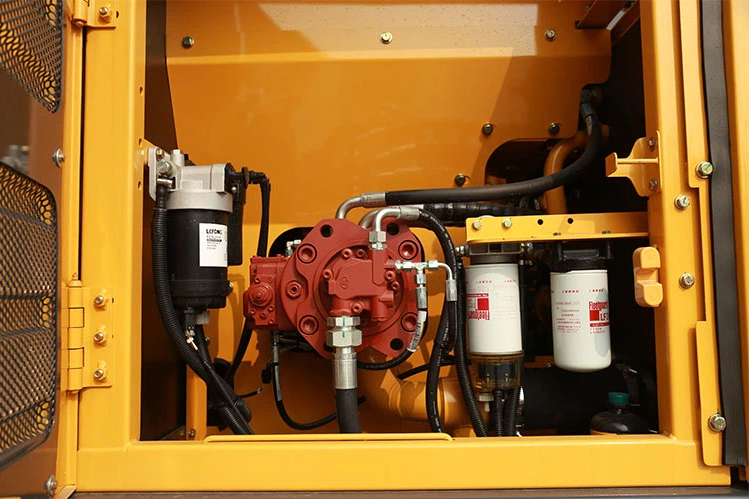

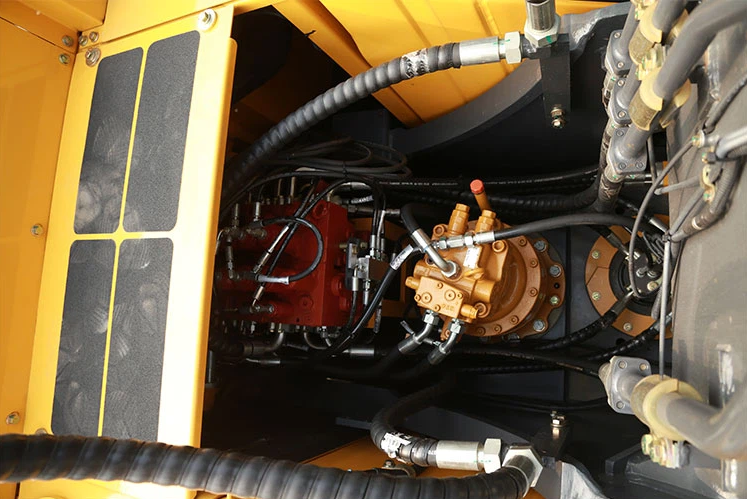

This model features a KAWASAKI hydraulic system that provides stable and reliable power output alongside flexible operational performance. This hydraulic excavator design allows the excavator to excel in various working conditions, enhancing overall work efficiency.
03. Reinforced Chassis Frame
The WW330 equipped with a Cummins engine, boasts enhanced durability of its chassis frame, significantly improving the overall strength of the machine. The use of robotic welding technology ensures high precision and safety, extending the equipment's lifespan.
04. Bucket Capacity
Offers a bucket capacity of 1.6 m³ for efficient operation in diverse conditions.
01. ROPS Safety Cabin

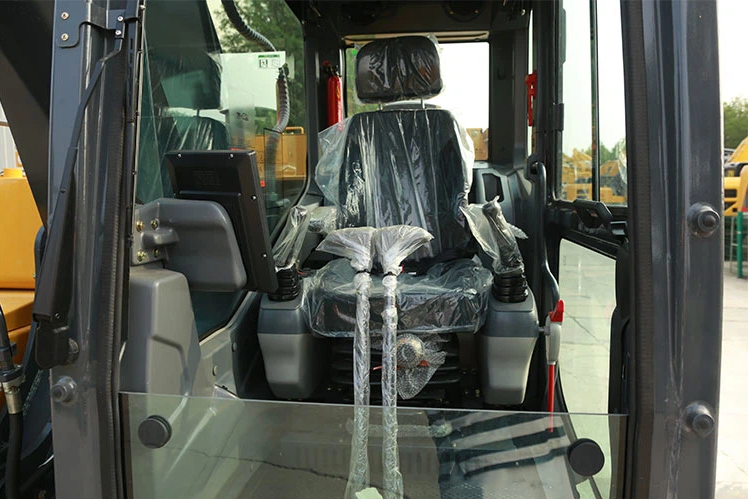

Designed with a ROPS safety cabin for enhanced operator protection during operation.
02. Intelligent Monitoring System

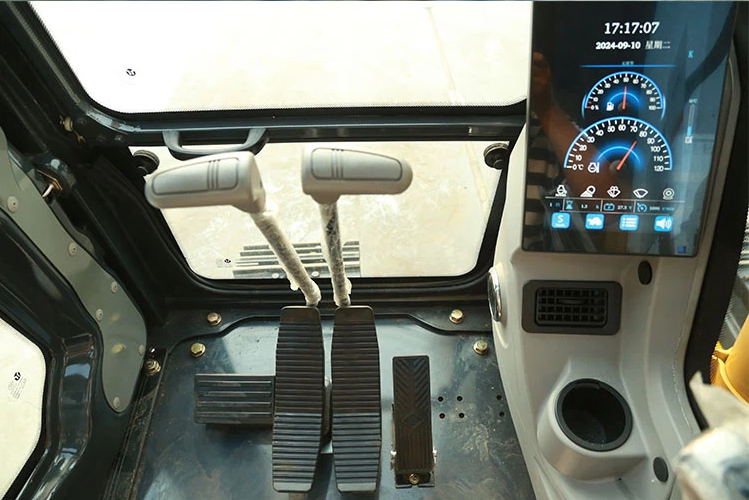

The WW330 is equipped with a color LCD display that monitors fuel, oil, and pressure in real-time. This system helps operators keep track of the machine's operational status, allowing for timely maintenance to ensure the equipment remains in optimal condition.
Qhmach - More Excavator
We offer tailored OEM/ODM services to meet your needs, including customization of excavator engines, specific colors, and personalized logos. Our team is dedicated to ensuring that every aspect aligns with your brand identity and operational requirements. Let us help you create a distinctive solution.
WW330 Excavator Technical Parameter
| Model | WW330 |
|---|---|
| Operating weight [kg] | 32800 |
| Boom length [mm] | 6150 |
| Arm length [mm] | 3200 |
| Bucket capability [m³] | 1.6 |
| Max. Travel speed [km/h] | 3.4/5.2 km/h |
| Max. turning speed [rpm] | 9.5 |
| Grade ability [°] | 35°(70%) |
| Ground pressure [kPa] | 62 |
| Max. Traction force [kN] | 283 |
| Engine model | QSI.9 |
| Rated power [kW] | 209 kW/2100 rpm |
| Max. Torque [Nm/rpm] | 1472/1400 N.m/rpm |
| Displacement [L] | 8.9 L |
| Fuel tank volume [L] | 600 L |
| Max. Flow (total) [L/min] | 288×2 L/min |
| Max. Working pressure [Mpa] | 34.3 |
| Max. Pilot pressure [Mpa] | 3.9 |
| Max. Arm digging force kN] | 170 |
| Max. Bucket digging force [kN] | 220 |
| Hydraulic oil tank [L] | 300 L |
| Track width [mm] | 600 |
| System voltage [V] | 24V |
| Battery capacity [V.Ah] | 24V/165×2 |
| Emission Standard | EU stage V |
| Overall Dimensions LWH | 10715*3190*3600 |
Qhamch Excavator Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
