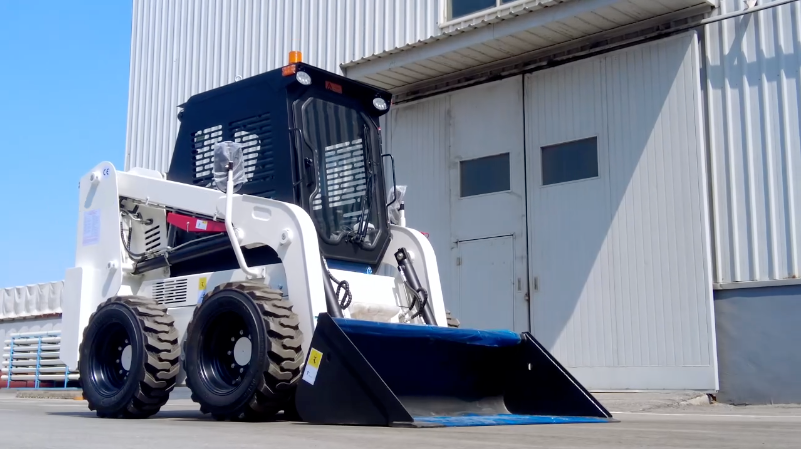

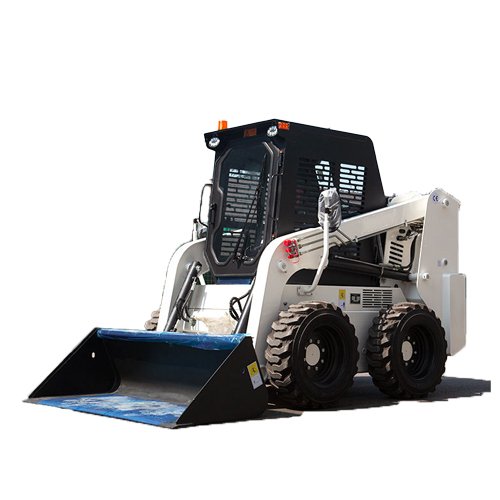

3 Ton Skid Steer Front End Loader WSL08A with 45kW Engine
The Qhmach WSL08A skid steer front end loader is a versatile solution for a wide range of applications, from cleaning snow, debris, and garbage on roads to repairing surfaces and drawing road markings. With a powerful 45kW engine and a capacity of 0.47 cubic meters for its bucket, it excels in transporting building materials such as sand, cement, bricks, and steel, as well as in excavation and leveling tasks. Designed for agility, the WSL08A all wheel steer skid loader can swiftly navigate narrow streets and busy urban areas, making it the perfect choice to meet various operational needs efficiently.
Main Technical Performance Characteristics

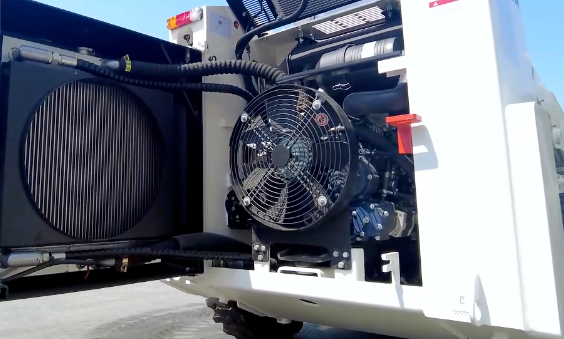

01. Advanced Engine Technology
The WSL08A skid steer front end loader utilizes the latest diesel engine technology, offering exceptional fuel efficiency and compatibility with multiple engine brands.
02. Fully Hydraulic Control System
Enhances production efficiency and reduces operator fatigue while ensuring stable and reliable performance. This system controls hydraulic oil for crushing operations and minimizes mis-operation through optimized hydraulic components.

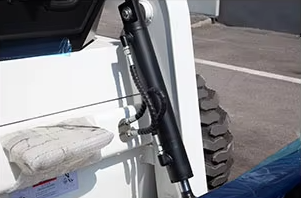

03. Reliable hydraulic control system
The fully hydraulic control system improves production efficiency, reduces operator fatigue, and ensures stable and reliable performance. This system achieves crushing operations by controlling hydraulic oil. At the same time, the hydraulic control system can prevent operator misoperation, optimize internal hydraulic components, and significantly reduce intermediate links.
04. Enhanced Component Structure
Features increased ground clearance for improved stability while maintaining the integrity of vertical and horizontal components. Integrated solenoid valves and simplified hydraulic pipelines facilitate efficient operation.
05. Compact and Stable Design
This WSL08A front loader skid steer with a narrow body, long wheelbase, high chassis, and smaller turning radius, the WSL08A offers high overall stability and strong off-road capability.

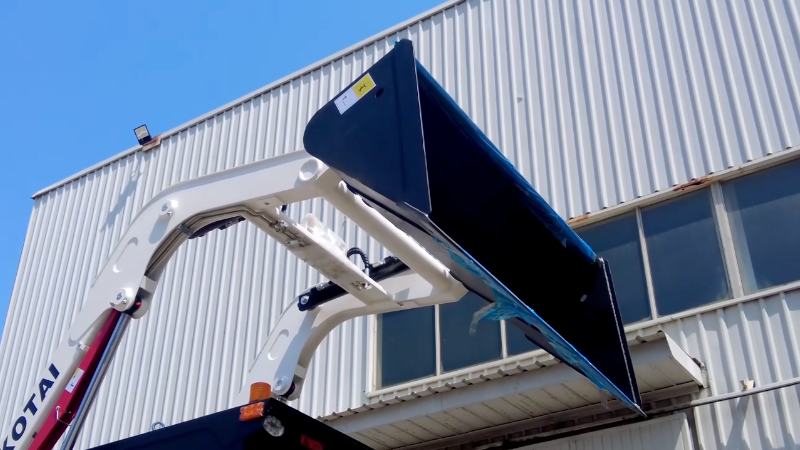

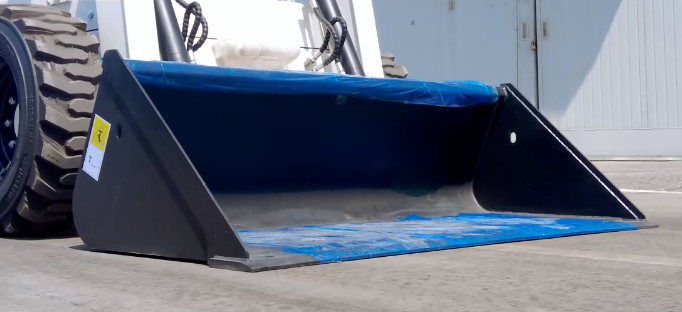

06. Large Bucket Capacity
The 0.47m³ bucket allows for greater shoveling and transporting capacity, optimizing material handling efficiency.

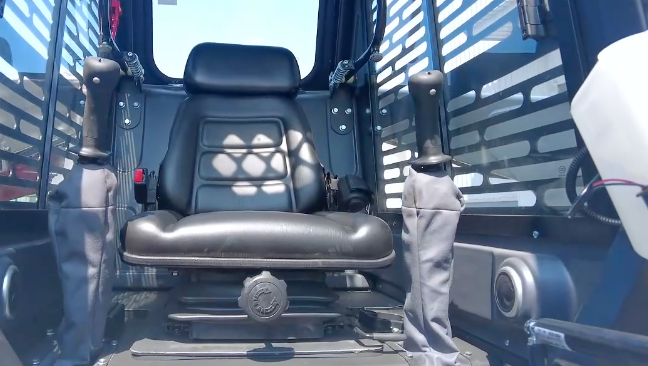

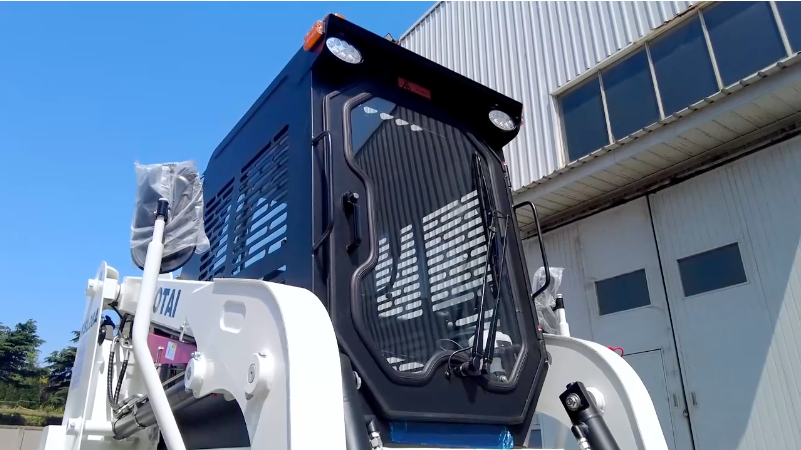

01. Safety and Comfort
Equipped with a high-strength cab that meets FOPS/ROPs safety standards, providing a spacious and secure driving environment.
02. Reduced Misoperation
The hydraulic operating system features an electrically controlled self-locking interlock design, ensuring safer operation.

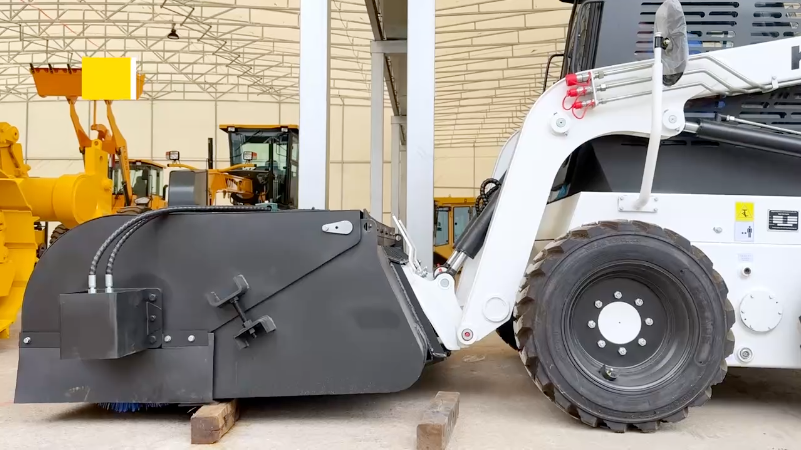

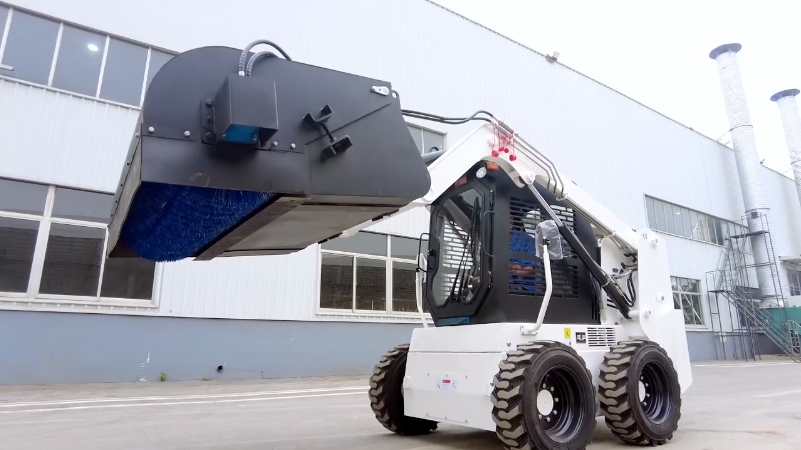

03. Quick Attachment Changes
Utilizes internationally recognized quick-change devices, allowing for fast and convenient attachment swaps compatible with most manufacturers.
04. Driver Safety Focus
Safety is prioritized with guardrail-style enclosures, ensuring a secure operating environment for the driver.
Qhmach - More Loader
We offer tailored OEM/ODM services to meet your needs, including customization of loader engines, specific colors, and personalized logos. Our team is dedicated to ensuring that every aspect aligns with your brand identity and operational requirements. Let us help you create a distinctive solution.
WSL08A Skid Steer Front Loader Technical Parameter
3 Ton Skid Steer Wheel Loader WSL08A with 45kW Engine
| Model | WSL08A |
|---|---|
| Operating weight | 2980kg |
| Rated payload | 830kg |
| Bucket Capacity | 0.47m³ |
| Max.loading | 22kN |
| Lifting type | Radial |
| Dimensions [length * width * height] | 3352*1800*2090mm |
| Engine model | Quanchai |
| Emission standard | CHINA-Ⅱ |
| Rated power | 45kW |
| Walking speed | 11.2km/h |
| Tyre | 10-16.5 |
| Fuel tank | 81L |
| Maximum operating height | 3897mm |
| Unloading height | 2266mm |
| Unloading distance | 662mm |
| Total cycling time | 10.2s |
| Ground clearance | 210mm |
| Front turning radius | 2052mm |
| Rear turning radius | 1516mm |
| Bucket width | 1800mm |
Qhamch Loader Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
