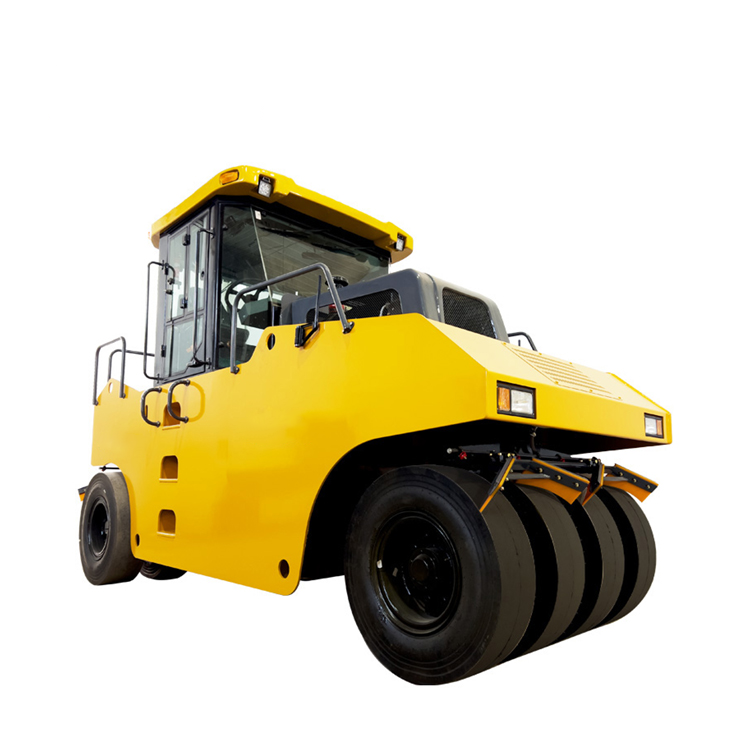

20 Ton Pneumatic Rubber Tire Roller WP206 Fully Hydraulic Drive
The Qhmach WP206 pneumatic rubber tire roller is equipped with a Weichai engine, features full-floating front wheels for effective compensation compaction, and achieves high road surface flatness. This fully hydraulic tire 20 ton roller is suitable for compacting base layers, sub-base layers, and asphalt pavements, making it the preferred equipment for constructing high-grade highways, ports, airports, and industrial construction sites.
Main Technical Performance Characteristics
01. Efficient Power
The pneumatic rubber tire roller WP206 equipped with a Weichai 105kW engine, providing strong and sustained power, and ensuring durability and reliability.
02. Advanced Hydraulic Drive
This 20 ton roller WP206 fully hydraulic drive ensures smooth, shock-free starting and stopping, effectively preventing wrinkling and shoving on the working surface and ensuring extremely high compaction flatness.

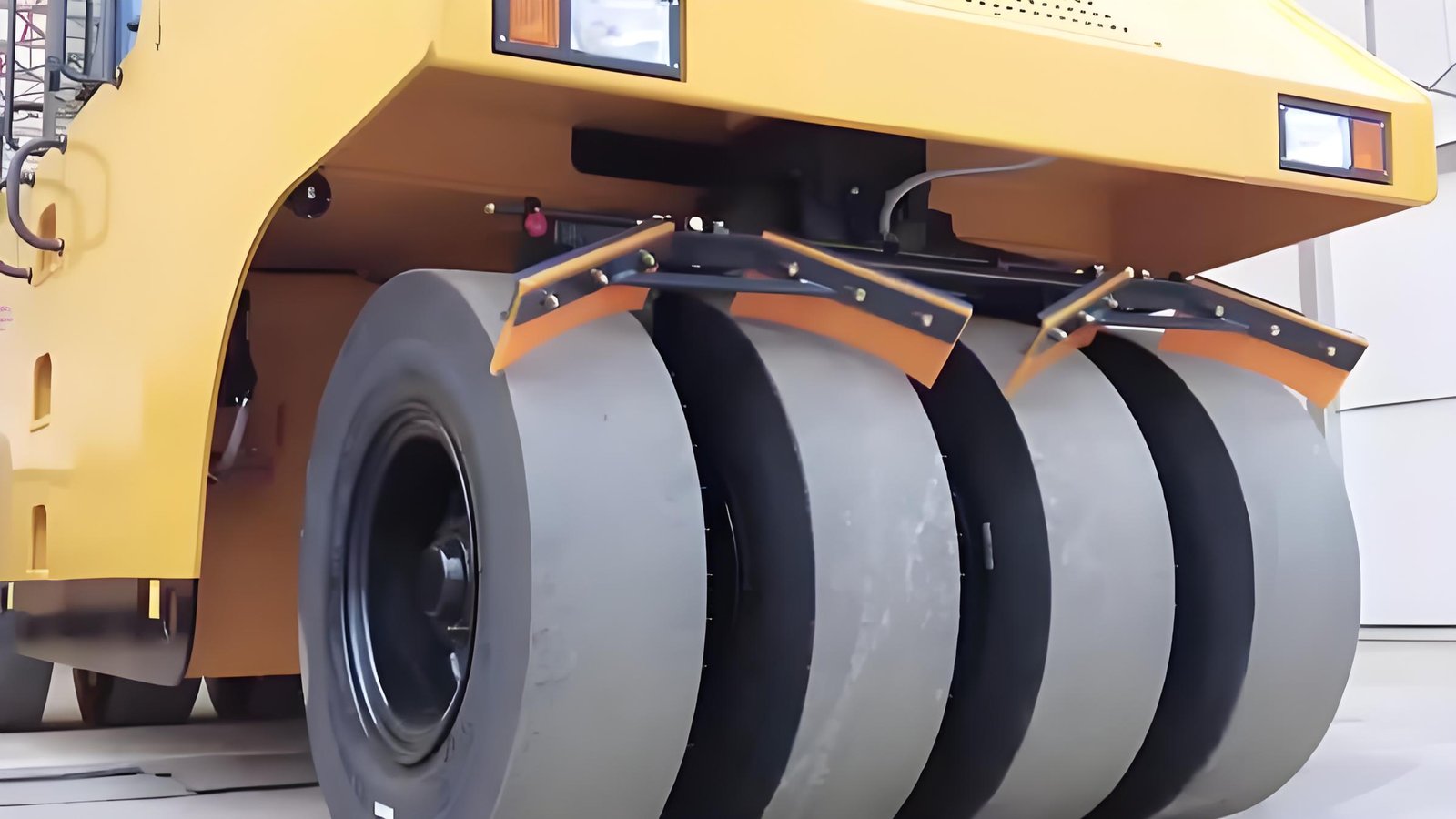

03. Intelligent Compensation Compaction Technology
Fully floating front wheels effectively compensate for compaction.
01. Easy Operation
Fully hydraulic stepless speed regulation, one-lever operation for simple and safe operation, significantly reducing labor intensity.
02. Safe Brake System
Three-stage braking system (axle, hydrostatic, and pneumatic-hydraulic) suitable for various operating conditions, ensuring enhanced safety and reliability.
03. Comfortable Driving Environment
The WP206 asphalt road roller cab offers excellent visibility and an attractive design. It features air conditioning for added comfort, and an optional awning.
Convenient Maintenance
The engine cover for easy maintenance and servicing. This design allows operators to quickly access the engine components, streamlining routine checks and repairs. As a result, maintenance tasks can be completed efficiently, minimizing downtime and ensuring the roller remains in optimal working condition.
Qhmach - More Road Roller
Our pneumatic tyre rollers are all container compatible, designed to save customers on machine transportation costs.
20 Ton Pneumatic Rubber Tire Roller WP206 Technical Parameter
| Fully hydraulic pneumatic tyred rollers | Unit | WP206 |
|---|---|---|
| Maximum operation weight | kg | 20000 |
| Ground pressure | kPa | 200-440 |
| Compaction width | mm | 2270 |
| Climbing capability | % | 20 |
| I speed | km/h | 0-7 |
| II speed | km/h | 0-15 |
| Turning radius | mm | 7500 |
| Type specification(matte) | – | 11.00-20 |
| Type qty(f/r) | – | 4/5 |
| Engine brand | – | Weichai |
| Emission standard | – | Tier2 |
| Engine power | kW | 105 |
| Dimensions | mm | 5200×2270×3350 |
Qhamch Road Roller Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
