11.5 Ton Big Wheel Loader WL835H with EU Stage V Emission Standard
The Qhmach WL835H 11.5 ton big wheel loader is powered by a robust and fuel-efficient Cummins engine, designed to meet the stringent EU Stage V emission standards. This versatile machine is perfect for a wide range of applications, including construction sites, mining operations, ports, and logistics warehouses. With a bucket capacity of 1.8 cubic meters, the WL835H excels in earthmoving, loading sand and gravel, and material transportation, delivering exceptional performance and reliability in any setting.
| Operating Weight | (11400)11500 ± 300kg |
|---|---|
| Bucket Capacity (m³) | 1.8 |
| Engine Brand | |
| Emission Standard | |
| OEM/ODM | Support |
Main Technical Performance Characteristics

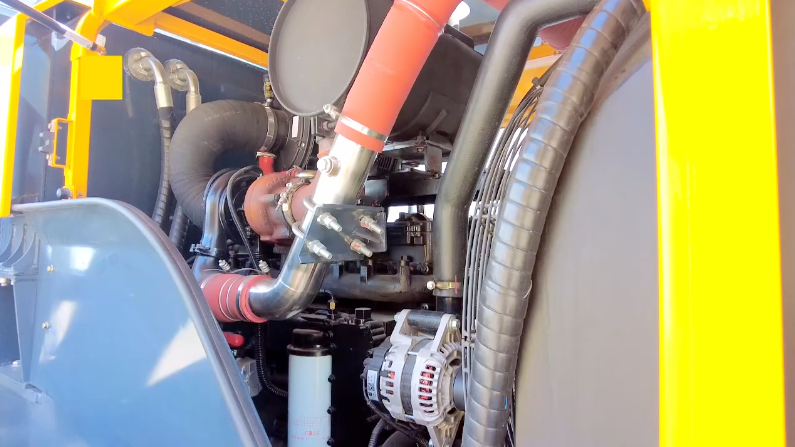

01. Powerful Engine
The Qhmach WL835H big wheel loader is equipped with a powerful Cummins engine, delivering exceptional performance and high reliability. With its low failure rates and straightforward maintenance, this machine ensures efficient operation, making it an ideal choice for a variety of construction and material handling tasks.
02. Excellent Load Capacity
The Qhmach WL835H is a powerful 11.5-ton large wheel loader with an impressive bucket capacity of 1.8 cubic meters.
03. Efficient Fan Design
WL835H construction wheel loader uses a scythe-shaped fan that offers high airflow, low noise, and low energy consumption, presenting advantages over traditional metal fans.
04. Enhanced Drive Axle
The latest drive axle, increases load capacity by 15%, with high overload resistance and improved overall reliability.

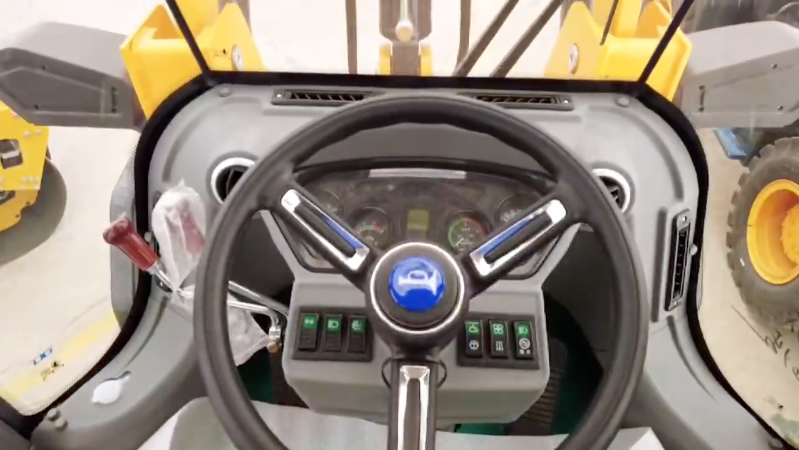

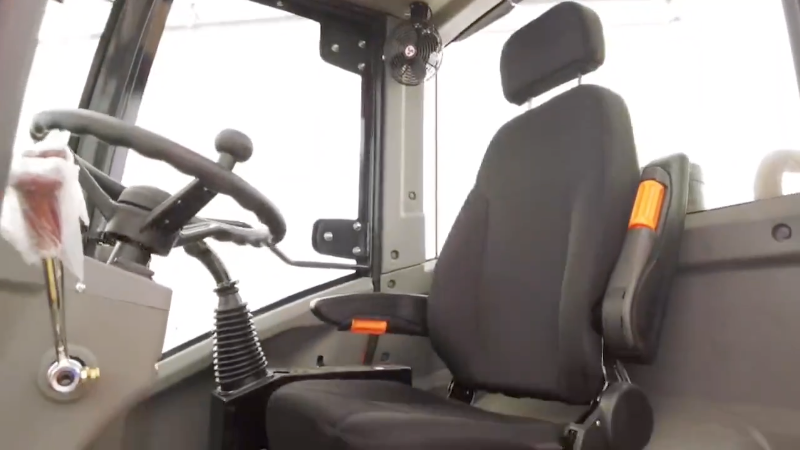

01. Spacious Cabin
Provides a comfortable working environment with a wide field of vision, enabling operators to better observe the job site and enhancing accuracy and safety.
02. Fully Hydraulic Operation System
The WL835H is equipped with a fully hydraulic steering system that is easy to operate and compact. The hydraulic control system for the work device ensures flexible, responsive, and stable operation.
Qhmach - More Loader
We offer tailored OEM/ODM services to meet your needs, including customization of loader engines, specific colors, and personalized logos. Our team is dedicated to ensuring that every aspect aligns with your brand identity and operational requirements. Let us help you create a distinctive solution.
WL835H Wheel Loader Technical Parameter
11.5 Ton WL835H Construction Wheel Loader with EU Stage V Emission Standard
| Model | WL835H |
|---|---|
| Bucket capacity | 1.8m³ |
| Operation weight | (11400)11500 ± 300kg |
| Traction force | 105±3kN |
| Dimensions | 7770*2500*3180mm |
| Rated weight | 3500kg |
| Rated power | 105kW@2200rpm |
| Engine brand | Cummins/B4.5 |
| Max. torque | 580N.m@1400-1600rpm |
| Emission standard | EU Stage V |
| Steering angle | ±35° |
| Hydraulic pressure | 14MPa |
| Fuel tank | 200L |
| Hydraulic oil tank | 165L |
Qhamch Loader Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
