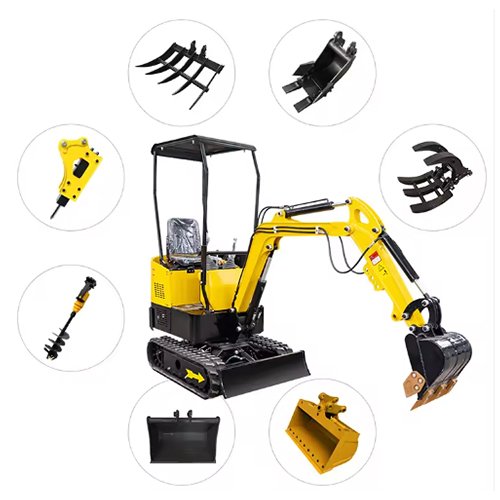

1 Ton Crawler Excavator WW010 Compact Mini Excavator
The Qhmach WW010 1 ton crawler excavator boasts remarkable stability, a powerful 7.2 kW engine that meets EU Stage V emission standards, and high-quality hydraulic components. This compact mini excavator is ideal for a range of applications, including urban construction, landscaping, utility work, and small-scale digging projects, making it a valuable asset in various engineering tasks.
| Bucket Capacity (m³) | 0.022 |
|---|---|
| Engine Brand | |
| Rated Power (kW/rpm) | 7.2/2400 |
| Bucket Digging Force (kN) | 9.4 |
| OEM/ODM | Support |
Main Technical Performance Characteristics
01. Energy-Saving and Fuel-Efficient Power System
This WW010 1 ton crawler excavator is equipped with a reliable Yanmar engine known for strong performance, with options that meet European emission standards.
02. Premium Components
Main hydraulic pump sourced from Japan, while the main valve and motor are produced in Italy for optimal performance.
03. Premium Hydraulic Pipelines
WW010 mini crawler excavator uses German brand hydraulic pipelines for durability and efficiency.
01. Enhanced Stability
A 100 kg counterweight at the rear ensures better stability during operation.
02. Adjustable Dozer Blade
Blade length can be adjusted from 84 cm to 105 cm, with a working height ranging from -15 cm to 15 cm for flexibility in various tasks.
03. Easy Startup
Features a pressure-reducing valve that simplifies starting the machine.
Qhmach - More Excavator
We offer tailored OEM/ODM services to meet your needs, including customization of excavator engines, specific colors, and personalized logos. Our team is dedicated to ensuring that every aspect aligns with your brand identity and operational requirements. Let us help you create a distinctive solution.
WW010 1 Ton Crawler Excavator Technical Parameter
| Model | WW010 |
|---|---|
| Operating weight [kg] | 1010 |
| Bucket capability [m³] | 0.022 |
| Bucket width[mm] | 320 |
| Max. Travel speed [km/h] | 1.5/2.9km/h |
| Max. turning speed [rpm] | 8.2 |
| Grade ability [°] | 30 |
| Ground pressure [kPa] | 24.5 |
| Angle (left/right) [°] | 73°/53° |
| Engine | Yanmar |
| Emission Standard | EU Stage V |
| Rated Power [kW] | 7.2kW/2400rpm |
| Displacement [L] | 0.57 |
| Fuel tank volume [L] | 9.4 |
| Max. Flow (total) [L/min] | 9.6*3 |
| Max. Working pressure[Mpa] | 16 |
| Max. Pilot pressure [Mpa] | 3.2 |
| Max. Arm digging force [kN] | 5.8 |
| Max. Bucket digging force [kN] | 9.4 |
| Hydraulic oil tank [L] | 9.5 |
| Track width [mm] | 180 |
| System voltage [V] | 12V |
| Battery capacity [VAH] | 12V/36Ah |
Qhamch Excavator Manufacturer Note: We remain the right modify dimension of equipment due to update of spare parts and structure design, all modification will not effect performance of equipment.
